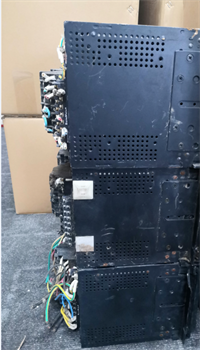

GE G60E00HAHF8LHXXM8LPXXUXXWXX | Generator Management Relay

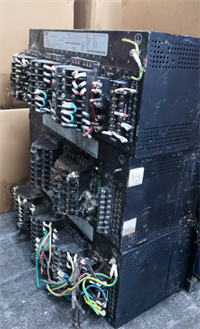

GE G60E00HAHF8LHXXM8LPXXUXXWXX | Generator Management Relay - Image 2
GE G60E00HAHF8LHXXM8LPXXUXXWXX | Generator Management Relay - Image 3
GE G60E00HAHF8LHXXM8LPXXUXXWXX | Generator Management Relay - Image 4

GE G60E00HAHF8LHXXM8LPXXUXXWXX | Generator Management Relay

  • Model: G60E00HAHF8LHXXM8LPXXUXXWXX
  • Brand: GE (General Electric) / GE Multilin
  • Series: UR Series (Universal Relay)
  • Core Function: Advanced generator protection, control, and monitoring
  • Type: Generator Management Relay / Chassis Controller
  • Key Specs: 1.66 GHz Processor, Redundant 24VDC Power, High-Impedance Differential Protection
Category: SKU: G60E00HAHF8LHXXM8LPXXUXXWXX GE

Description

Key Technical Specifications

Parameter Specification
Processor Intel 1.66 GHz 64-bit Embedded
Memory 1GB DDR2 RAM, 2GB Non-volatile Flash
Power Supply Redundant 24VDC Input (Code H)
Installation Horizontal Mounting (19″ Rack)
CT/VT Inputs 4CT / 4VT (Standard configuration)
Digital I/O MOSFET Outputs (Static)
Communication Redundant Ethernet (1Gbps UDH/IO)
Operating Temp 0 to 60°C
OS QNX Real-time Multitasking
Cycle Time 40ms Control Cycle



Product Introduction

The GE G60E00HAHF8LHXXM8LPXXUXXWXX is a high-performance Generator Management Relay from the UR Series. It is designed to provide comprehensive protection, control, and monitoring for electrical generators in power plants and industrial facilities. This unit functions as a chassis controller, integrating a powerful 1.66 GHz Intel processor to handle complex protection algorithms and real-time diagnostics.This specific configuration features redundant 24VDC power inputs for high availability and horizontal mounting for standard 19-inch racks. It supports high-speed communication via redundant 1Gbps Ethernet networks (UDH and I/O networks) and utilizes the QNX real-time operating system. The relay is capable of precise synchronization (NTP within 1ms) and offers flexible I/O configurations to interface with various generator components.

Installation & Configuration Guide

Preparation (10 min)

  1. Safety: Ensure the control power (24VDC) is disconnected before handling.
  2. Verify the chassis slot availability (Standard station vs. Control station).
  3. Prepare Ethernet cables for the UDH (Universal Data Highway) and I/O networks.

Removal (5–10 min)

  1. If replacing an existing unit, disconnect the rear ribbon cables or bus connectors.
  2. Unscrew the faceplate mounting screws.
  3. Slide the module out of the rack carefully.

Installation (10 min)

  1. Insert the G60 module into the designated chassis slot (typically Station 24 or 25 for controllers).
  2. Secure the faceplate screws to ensure proper grounding.
  3. Connect the redundant 24VDC power supply to the rear terminals.
  4. Plug in the Ethernet cables for the redundant network connections.

Power-On & Test (10 min)

  1. Apply 24VDC power. The unit will boot the QNX OS.
  2. Check the status LEDs for “Run” and “OK” indicators.
  3. Connect a PC via the front USB or Ethernet port.
  4. Use the EnerVista UR software to establish a connection and verify the firmware version.



Troubleshooting Quick Reference

Symptom Probable Cause Corrective Action
Module Not Powering Up 24VDC supply missing or reversed. Measure voltage at the power terminals; check polarity.
Communication Failure IP address mismatch or cable fault. Verify IP settings in EnerVista; check Ethernet link LEDs.
“Bad Memory” Error Flash corruption or battery failure. Re-flash the firmware; check the battery status in diagnostics.
I/O Modules Not Detected Backplane connection issue. Reseat the module; verify the chassis backplane integrity.



Dimensions, Mounting & Wiring Notes

  • Mounting: Horizontal (19-inch rack mount).
  • Chassis Compatibility: Fits standard UR series chassis (CAMAC style data channel).
  • Wiring:
    • Power: Redundant 24VDC inputs.
    • Network: 1Gbps Ethernet (RJ45 or Fiber depending on sub-module).
    • I/O: Connected via the chassis backplane or external terminal blocks.
  • Note: This unit occupies specific “Control Station” slots (24/25) in the chassis. Do not install in standard I/O slots (1-23).
G60E00HAHF8LHXXM8LPXXUXXWXX GE

G60E00HAHF8LHXXM8LPXXUXXWXX GE

FAQ

What is the function of the G60E00HAHF8LHXXM8LPXXUXXWXX?
It acts as a Generator Management Relay, providing advanced protection (differential, overcurrent), control, and monitoring for electrical generators. It also serves as the chassis controller for the UR series system.What software do I need to configure this relay?
You need the EnerVista UR software suite, which is the standard configuration tool for GE Multilin UR series relays.Does this unit support redundant power?
Yes, the “H” code in the model number indicates it is equipped with redundant 125/250V or 24/48V power supplies (verify specific voltage on label).Can I use this in a vertical rack?
This specific model (Code H in installation field) is designed for Horizontal mounting. For vertical mounting, a different model code (e.g., VF) is required.What processor is inside this relay?
It is powered by an Intel 1.66 GHz 64-bit embedded processor, running the QNX real-time operating system.
