GE 705-1512-01 | IQ Module Analog I/O Control

Description

Key Technical Specifications

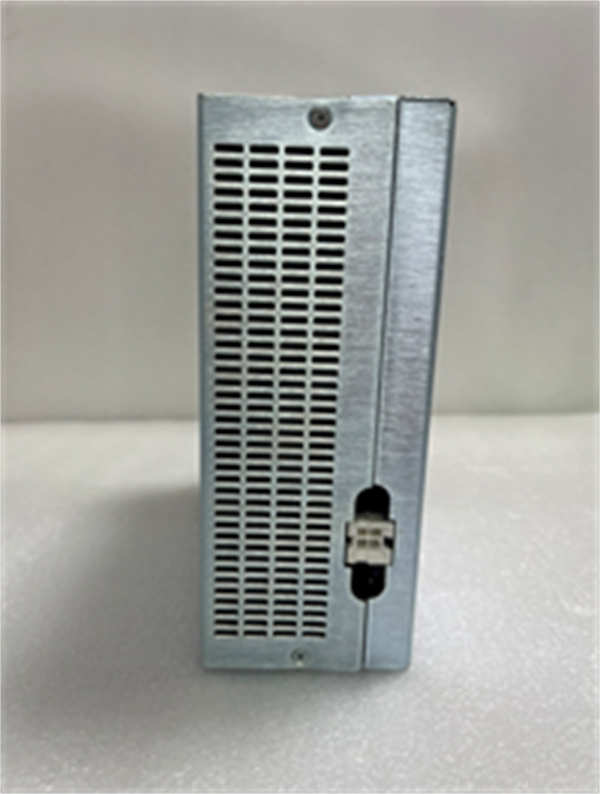

705-1512-01 GE

Product Introduction

The GE 705-1512-01 is an IQ series module manufactured by GE Fanuc, engineered to convert analog signals into digital data within industrial control systems. It acts as a critical interface in automation environments, specifically handling voltage-to-current signal translation for precise equipment monitoring.What sets this module apart is its electrical isolation capability, rated at 500Vrms, which effectively suppresses common-mode interference. With a measurement accuracy of 0.1% and linearity of 0.05%, it ensures reliable data integrity in high-noise sectors like power generation, petrochemical processing, and metallurgy.

Installation & Configuration Guide

Preparation (10 min)

• Ensure the main control rack power is completely disconnected.
• Verify the 24V DC power supply capacity has at least a 20% margin over the total system load.
• Gather a small flat-head screwdriver for terminal wiring.

Removal (5–10 min)

• If replacing an existing unit, carefully label all connected wires.
• Release the module locking tab (usually located at the top or bottom edge).
• Gently pull the module straight out of the slot. Do not force it if it feels stuck—check for hidden screws.

Installation (10 min)

• Align the 705-1512-01 connector pins with the backplane slot.
• Push firmly until the module seats completely and the locking tab clicks into place.
• Connect the input signal wires (0-10V) and output loop wires (4-20mA) to the designated terminals.

Power-On & Test (10 min)

• Restore power to the control system.
• Observe the module status LEDs. A steady green usually indicates normal operation (verify specific LED codes in the system manual).
• Inject a known test voltage (e.g., 5V) and verify the output current reads correctly (e.g., 12mA) using a multimeter.

Troubleshooting Quick Reference

Dimensions, Mounting & Wiring Notes

• Dimensions: 22.2mm (H) x 11.2mm (W) x 10.2mm (D)
• Mounting: DIN-rail or Rack-mount compatible (specific to GE IQ series chassis).
• Wiring Note: The module handles 0-10V inputs. Ensure your field sensors match this range to avoid clipping or inaccurate scaling. The 500Vrms isolation protects the low-voltage logic side from high-voltage spikes on the field side.

705-1512-01 GE

FAQ

Is the GE 705-1512-01 compatible with newer PACSystems?
This is a legacy GE Fanuc IQ module. While it is designed for specific GE control systems, compatibility with newer PACSystems (like RX3i or RX7i) usually requires specific backplane adapters or may not be supported. Verify your chassis series before purchasing.What does “New Original” condition mean for this part?
It means the module is an authentic GE product, unused, and typically comes in original packaging (New Surplus). It has not been refurbished or repaired by a third party.I’m getting a 0.5% error margin. Is the module faulty?
The specified accuracy is 0.1%. If you are seeing 0.5%, check your wiring connections first. Loose terminals or electromagnetic interference (EMI) from nearby VFDs are common culprits before assuming hardware failure.Can this module handle temperature sensor inputs directly?
While some IQ modules support temperature inputs, the 705-1512-01 is primarily characterized for 0-10V analog voltage input. If you need to read a thermocouple or RTD, you likely need a signal conditioner to convert that to 0-10V first.Do you offer a warranty on this automation part?
Yes, we typically provide a standard warranty (e.g., 12 months) covering manufacturing defects and functionality upon arrival. Note: Warranty does not cover damage from improper installation or electrical surges.
