WhatsApp: Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| OEM Part Number | 3BHE039203R0101 |
| Internal Model | GVC736CE101 |
| Device Type | IGCT (Integrated Gate Commutated Thyristor) |
| Control Voltage | 24V DC |
| Max Current | 2A |
| Operating Temp | -20°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Protection Class | IP20 |
| Enclosure Material | Metal |
| Connection Interface | RJ45 / Industrial Bus |
| Data Transfer Rate | Up to 10 Mbps |
| Application | Medium Voltage Drives (ACS6000/ACS800MV) |
Product Introduction
The ABB 3BHE039203R0101 (also identified as model GVC736CE101) is a specialized Integrated Gate Commutated Thyristor (IGCT) module designed for high-power industrial automation. It serves as a critical switching component in ABB’s medium voltage drive systems, handling precise power regulation and current commutation.Unlike standard IGBTs, this IGCT module combines the low conduction losses of a thyristor with the stable turn-off characteristics of a transistor. It is engineered to handle massive power loads in systems like the ACS6000 and ACS800MV series, offering reliable operation in demanding environments ranging from -20°C to +60°C.
Installation & Configuration Guide
Phase 1: Preparation (10 min)
- Ensure the main power supply to the drive cabinet is completely locked out and tagged out (LOTO).
- Verify you have an ESD (Electrostatic Discharge) wrist strap. IGCTs are highly sensitive to static voltage.
- Gather a multimeter and a small flat-head screwdriver for terminal checks.
Phase 2: Removal (5–10 min)
- Locate the faulty module on the power stack or control rack.
- Disconnect any communication cables (RJ45 or bus connectors) gently.
- Unscrew the mounting hardware. Note: Take a quick photo of the DIP switch or jumper settings before fully removing the old unit, just in case.
- Slide the module out of the chassis.
Phase 3: Installation (10 min)
- Compare the new ABB 3BHE039203R0101 with the old unit to ensure physical alignment matches.
- Insert the module firmly into the slot or mount it to the heatsink.
- Tighten screws to the OEM torque specification (usually found on the heatsink label).
- Reconnect the communication and gate driver cables. Ensure the latch clicks into place.
Phase 4: Power-On & Test (10 min)
- Remove LOTO devices and restore auxiliary control power (24V DC).
- Check for any immediate error LEDs on the drive panel.
- Perform a communication handshake test via the HMI or drive software to confirm the module is recognized.
Troubleshooting Quick Reference
| Symptom | Probable Cause | Recommended Action |
|---|---|---|
| Module not recognized | Loose communication cable | Reseat the RJ45/Bus connector firmly. |
| Overcurrent Fault | Gate driver mismatch | Verify firmware version matches the drive system. |
| Overheating | Poor heatsink contact | Check mounting torque and thermal paste application. |
| Intermittent faults | ESD damage or loose terminal | Inspect terminals for burn marks; replace if damaged. |
Dimensions, Mounting & Wiring Notes
- Physical Dimensions: Approximately 120mm (H) x 80mm (W) x 40mm (D). Weight is roughly 0.2kg.
- Mounting Method: Designed for control room installation or direct integration into a drive power stack with a metal chassis ground.
- Wiring Notes: The module operates on a 24V DC control supply. Ensure your power supply has at least a 20% capacity margin to handle inrush current during switching events. The interface typically utilizes an RJ45 or specific industrial bus connector for signal transmission.

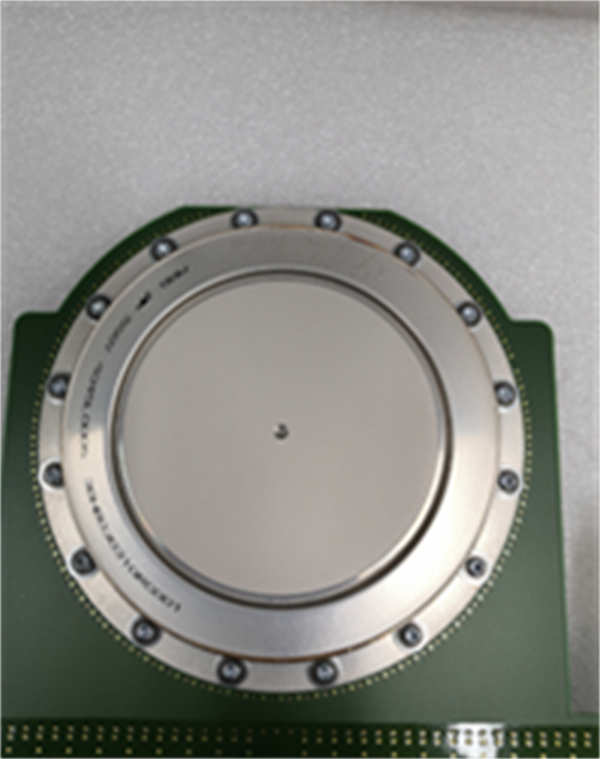

3BHE039203R0101 ABB
FAQ
What drives is the ABB 3BHE039203R0101 compatible with?
This IGCT module is primarily designed for ABB’s medium voltage drive systems, specifically the ACS6000 and ACS800MV series. It acts as a core power switching component in these high-voltage applications.Is this part new or refurbished?
We primarily stock this as New Original (New Surplus) or Refurbished (Tested). Please check the specific product listing or contact us directly to confirm the current inventory condition and warranty details before purchasing.Can I replace a GVC736CE101 with this part number?
Yes. 3BHE039203R0101 is the official ABB ordering code that corresponds to the GVC736CE101 model. They are functionally identical and interchangeable.I’m not an electrical engineer—can I install this myself?
While the physical swap is straightforward, this module controls high-voltage power. If you aren’t comfortable working with industrial drive cabinets or using a multimeter, we strongly recommend having a qualified technician handle the installation to avoid equipment damage.Do you offer a warranty on this module?
Yes, we typically offer a standard one-year warranty on our industrial automation components. The unit is tested for functionality (power-on self-test and communication handshake) before shipping.What is the lead time for shipping?
For in-stock items, we usually arrange shipment within 3 to 5 days after payment confirmation. We ship via major carriers like DHL, UPS, or FedEx to ensure safe and tracked delivery.
