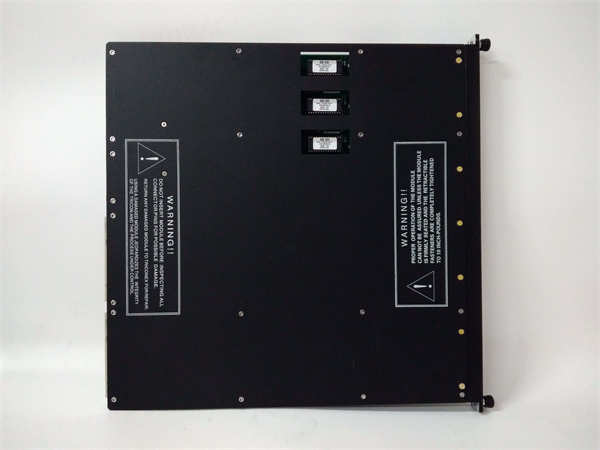

  • Model: 3503E
  • Brand: Triconex (now part of Schneider Electric)
  • Core Function: Triple-Modular Redundant (TMR) analog input module for high-integrity acquisition of 4–20 mA process signals in safety instrumented systems
  • Lifecycle Status: Discontinued (Obsolete)
  • Procurement Risk: Very high – no longer manufactured; limited to secondary market with significant concerns over calibration drift, component aging, and authenticity
  • Critical Role: Digitizes critical field measurements (e.g., pressure, temperature, level) for use in Safety Instrumented Functions (SIFs); failure can lead to missed trips, spurious shutdowns, or unsafe process excursions
Category: SKU: Triconex 3503E

Description

Technical Specifications (For Spare Verification)

  • Product Model: 3503E
  • Manufacturer: Triconex
  • System Compatibility: Triconex Tricon (v9 and earlier) safety controllers
  • Input Channels: 8 isolated 4–20 mA inputs (TMR architecture: three independent channels per logical point)
  • Input Range: 4–20 mA (sink mode), with open-wire detection
  • Resolution: 16-bit A/D conversion per channel
  • Accuracy: ±0.1% of span (typical at 25°C)
  • Input Impedance: ~250 Ω
  • Isolation: >500 VAC channel-to-channel and field-to-system
  • Diagnostics: Built-in self-test, channel mismatch detection, open-circuit alarms reported to main processor
  • Form Factor: Standard Tricon I/O module (fits 4-slot or 8-slot chassis)
  • Certifications: IEC 61508 SIL 3, API 670 compliant

Triconex 3503E

Triconex 3503E



System Role and Downtime Impact

The 3503E is a foundational signal acquisition module in Triconex-based Emergency Shutdown (ESD), Burner Management (BMS), and Turbine Protection Systems. It receives analog signals from certified transmitters (e.g., differential pressure for boiler drum level or temperature for reactor overheating) and feeds them into the TMR voting logic. Because each logical input is derived from three physically separate analog paths, the system tolerates single or even dual faults without compromising safety integrity. However, if internal components—such as precision resistors, op-amps, or A/D converters—drift due to aging, the module may report inaccurate values that fall within voting tolerance but outside safe process limits. This “dangerous undetected” failure could prevent a timely trip during an overpressure event. A complete module fault typically forces the affected SIF into bypass mode, which may violate regulatory requirements under IEC 61511 and necessitate operational restrictions. Replacement requires physical swap, loop revalidation, and full requalification of the safety function.



Reliability Analysis and Common Failure Modes

Despite its robust TMR design, the 3503E is vulnerable to time-dependent and environmental stressors:

  • Analog front-end drift: After 15+ years, precision resistors and op-amps exhibit parameter shift, leading to measurement offset or reduced common-mode rejection—especially under temperature cycling.
  • Electrolytic capacitor degradation: Internal filtering capacitors dry out, increasing noise susceptibility and causing intermittent diagnostic faults or false “open wire” alarms.
  • Terminal block corrosion: In humid, offshore, or corrosive environments, oxidation at screw terminals introduces resistance errors, mimicking low-current conditions (e.g., 3.9 mA) that trigger spurious faults.
  • Backplane connector fatigue: Repeated thermal expansion/contraction causes micro-cracks in edge connectors, resulting in intermittent communication loss or partial channel dropout.

A critical limitation is that while the module performs continuous self-tests and mismatch checks, it cannot detect gradual analog drift unless it exceeds voting thresholds between redundant channels.

Recommended preventive actions include:

  • Performing annual loop calibration using certified mA simulators under live or simulated conditions.
  • Inspecting and retorquing terminal connections during scheduled outages; applying anti-oxidant compound on copper conductors.
  • Monitoring Triconex diagnostic logs (via TriStation or EDM) for recurring “input deviation,” “channel fault,” or “open circuit” entries.
  • Storing spares in climate-controlled, ESD-safe environments to prevent latent damage.

Triconex 3503E

Triconex 3503E



Lifecycle Status and Migration Strategy

Schneider Electric has formally discontinued the 3503E as part of the end-of-life roadmap for legacy Tricon (v9) systems. No new units are available through authorized distribution. Remaining inventory consists of used or refurbished modules, many with undocumented service history and uncertain remaining life. Continued reliance on this module exposes facilities to escalating risk of safety system degradation, unplanned downtime, and non-compliance with functional safety standards.

Short-term mitigation strategies include:

  • Securing at least two fully tested, calibrated, and verified spares per critical SIF loop.
  • Engaging only vendors accredited under Schneider’s Authorized Repair Program for board-level refurbishment (including capacitor replacement, recalibration, and burn-in testing).
  • Implementing enhanced surveillance via Triconex Enhanced Diagnostic Monitor (EDM) to detect early signs of channel divergence.

For long-term sustainability, migration to the Triconex v11 platform is strongly recommended, using modern TMR analog input modules such as the MP200 series or T8261, which offer:

  • Higher accuracy (±0.05%) and 24-bit resolution
  • Integrated HART pass-through for smart transmitter diagnostics
  • Cybersecurity compliance (IEC 62443)
  • Continued manufacturer support and spare availability

Migration typically involves replacing the I/O chassis, updating configuration in Triconex Enhanced Diagnostic Software (TEDS), and revalidating all associated SIFs per IEC 61511. Facilities operating critical infrastructure should initiate a formal obsolescence risk assessment immediately—proactive planning is essential to maintain safety integrity, regulatory compliance, and operational continuity.
