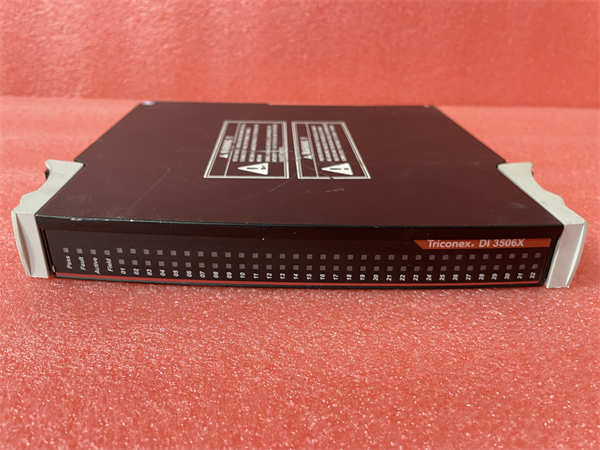

Tricon CX DI 3506X | 16-Channel Discrete Input Module | Obsolete Triconex SIS Spare Risk

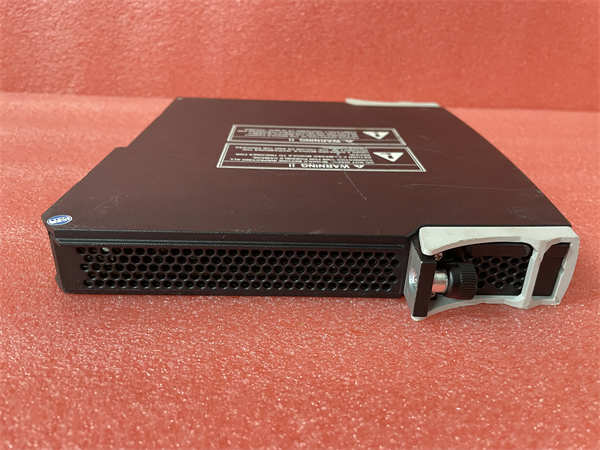

Tricon CX DI 3506X | 16-Channel Discrete Input Module | Obsolete Triconex SIS Spare Risk - Image 2

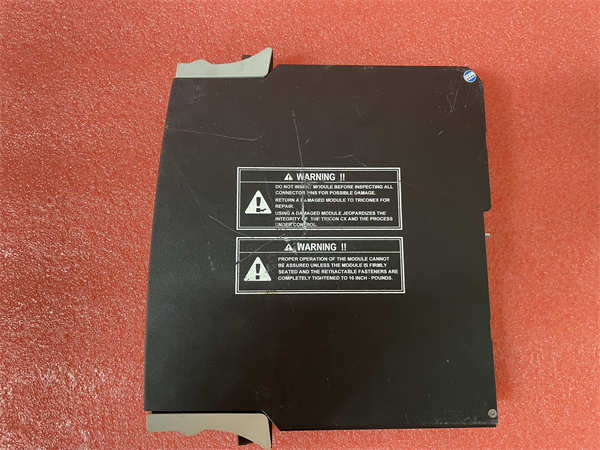

Tricon CX DI 3506X | 16-Channel Discrete Input Module | Obsolete Triconex SIS Spare Risk - Image 3
Tricon CX DI 3506X | 16-Channel Discrete Input Module | Obsolete Triconex SIS Spare Risk - Image 4

Tricon CX DI 3506X | 16-Channel Discrete Input Module | Obsolete Triconex SIS Spare Risk

  • Model: CX DI 3506X
  • Brand: Triconex (now Emerson)
  • Core Function: Triple-modular redundant (TMR) discrete input module for Tricon CX safety controllers
  • Lifecycle Status: Obsolete (Discontinued; not available as new from Emerson)
  • Procurement Risk: Very High – only accessible via third-party surplus or refurbished inventory; functional verification essential
  • Critical Role: Monitors field switch/status signals (e.g., ESD pushbuttons, valve limit switches); failure may cause loss of safety function or spurious trip
Category: SKU: Tricon CX DI 3506X

Description

Technical Specifications (For Spare Parts Verification)

  • Product Model: CX DI 3506X
  • Manufacturer: Triconex (Emerson Automation Solutions)
  • System Compatibility: Tricon CX chassis (pre-v10 Tricon platforms)
  • Input Type: Powered or non-powered discrete inputs (configurable via jumpers)
  • Number of Channels: Typically 16 or 32 per module (verify label)
  • Input Voltage Range: 24 VDC nominal (accepts 18–32 VDC for powered mode)
  • Diagnostic Coverage: Per-channel LED indication and internal TMR voting diagnostics
  • Redundancy: Fully integrated into Tricon’s triple-modular redundant (TMR) architecture
  • Mounting: Plug-in module with guide rails in I/O chassis
  • Power Consumption: Drawn from backplane (+5 V, ±12 V)
  • Certifications: Designed for use in IEC 61508 SIL 3 and IEC 61511 applications
  • Revision Marking: “X” suffix denotes hardware/firmware variant; must match chassis configuration

System Role and Downtime Impact

The CX DI 3506X is installed in the I/O chassis of a Tricon CX safety system and serves as the primary interface for critical binary field signals—such as emergency shutdown (ESD) buttons, pressure switch alarms, or valve position feedback. Within the TMR architecture, each input is independently read by three processing lanes, and discrepancies trigger diagnostic alarms or safe shutdowns. If this module fails, it may either fail dangerously (masking a hazardous condition) or fail safely (initiating an unplanned trip). In a refinery hydrocracker unit, for example, loss of a key pressure switch input could prevent an automatic depressurization sequence during overpressure, creating a serious process safety risk. Alternatively, a spurious fault could shut down multi-million-dollar production.

Reliability Analysis and Common Failure Modes

After 15–25 years of continuous operation in electrically noisy environments, the CX DI 3506X is susceptible to several age-related issues:

  • Input optocoupler degradation: Isolation components weaken over time, leading to signal leakage or missed transitions.
  • Backplane connector corrosion: Vibration and humidity cause oxidation on edge connectors, resulting in intermittent communication with main processors.
  • Power regulator overheating: Internal DC-DC converters degrade due to dust accumulation or poor ventilation, causing voltage droop under load.
  • Jumper misconfiguration or oxidation: Field-configurable jumpers for powered/non-powered mode can corrode or shift, altering input behavior.

A notable design constraint is the lack of hot-swap capability—module replacement requires chassis de-energization, which often means a full process shutdown. Additionally, diagnostic data is only accessible via Triconex Enhanced Diagnostic Monitor (EDM) software, which may not run on modern operating systems without virtualization.

Preventive maintenance should include:

  • Performing periodic loop checks on all connected field devices to verify end-to-end signal integrity.
  • Inspecting module LEDs for abnormal patterns during routine rounds.
  • Cleaning chassis filters and ensuring adequate cooling airflow.
  • Maintaining at least one spare module tested in a like-for-like chassis.
Tricon CX DI 3506X

Tricon CX DI 3506X

Lifecycle Status and Migration Strategy

Emerson no longer manufactures the CX DI 3506X and has consolidated support around the Tricon v10 and v11 platforms. While some authorized service providers offer board-level repairs, component obsolescence limits long-term viability. Continued reliance on this module increases exposure to unplanned outages and compliance challenges under functional safety standards.

As a temporary measure:

  • Verify compatibility of any spare using EDM and chassis self-test routines.
  • Document jumper settings, wiring termination points, and associated logic tags.
  • Consider adding external relay monitoring (e.g., contact supervision relays) to detect input circuit failures.

For long-term sustainability, Emerson’s recommended migration path is upgrading to the Tricon v11 DI 3503E or 3513E modules. This typically involves:

  • Replacing the I/O chassis and main processors
  • Retaining existing field wiring through compatible terminal bases (in most retrofit scenarios)
  • Reusing the original TriStation 1131 application logic with minimal revalidation

This upgrade maintains the proven TMR safety architecture while delivering enhanced cybersecurity, improved diagnostics, and extended lifecycle support. Facilities with critical safety functions should prioritize this transition during planned maintenance windows to ensure continued operational integrity beyond 2027.
