Technical Specifications (For Spare Part Verification)
- Product Model: T8480C
- Manufacturer: ICS Triplex / Schneider Electric
- System Platform: Triconex® Tricon (V10 and V11 controller generations)
- Module Type: TMR (Triple-Modular Redundant) digital input module
- Input Channels: 32 channels (grouped as 16 independent inputs, each sensed by three redundant circuits)
- Input Voltage Range: 18–32 V DC (nominal 24 V DC), compatible with dry contacts or powered signals
- Input Current: ～7 mA per channel at 24 V DC
- Diagnostic Coverage: Continuous wire-break, short-circuit, and cross-wire monitoring per IEC 61508
- Redundancy Architecture: 2oo3 (two-out-of-three voting) with automatic fault masking
- Backplane Interface: Proprietary Tricon high-integrity TMR bus
- SIL Certification: Certified for use in SIL 3 safety functions per IEC 61508 and IEC 61511 (TÜV-certified)
- Physical Form: Standard Tricon I/O module, front-panel LEDs for channel status, module OK, and fault indication
System Role and Downtime Impact
The T8480C is a foundational input interface within the Triconex® Safety Instrumented System (SIS), widely deployed in refineries, LNG facilities, chemical plants, and power generation. It resides in the I/O chassis and is responsible for reliably capturing binary field signals—such as emergency pushbuttons, limit switches, or equipment status feedback—and delivering them to the Tricon main processors with guaranteed fault tolerance.
Due to its TMR design, the module ensures that even if one of its three internal processing lanes fails, the correct signal value is still reported to the safety logic solver. This is essential for maintaining the required Probability of Failure on Demand (PFD) for SIL 3 applications.
If the T8480C fails catastrophically or loses synchronization between its lanes, the Tricon system will typically flag a module fault and may force affected safety functions into a safe state—potentially triggering a full plant shutdown. In non-redundant legacy configurations (rare but possible), a faulty module could miss a hazardous condition entirely, violating the core purpose of the SIS. Given its role in life-critical protection layers, unavailability of this module directly impacts operational license, regulatory compliance (OSHA PSM, EPA RMP), and insurance requirements.
Reliability Analysis and Common Failure Modes
Despite its robust industrial design, the T8480C is subject to age-related degradation common in electronics from the early 2000s. The most frequent failure mode involves optocoupler aging in the input isolation circuits. Over time, these components lose current transfer efficiency, leading to delayed signal response or complete channel dropout—especially under low-voltage conditions.
Another vulnerability lies in the power regulation circuitry. Electrolytic capacitors on the internal DC/DC converters can dry out after 10–15 years of continuous operation, causing voltage instability that desynchronizes the three redundant lanes. This often manifests as intermittent “voter mismatch” faults or spontaneous module resets.
The module is also sensitive to electrical transients from field wiring. Poor grounding, lack of surge protection, or inductive kickback from nearby solenoids can damage input clamping diodes or degrade signal integrity. Additionally, corrosion on the DIN-rail connector or backplane pins—due to humidity or hydrogen sulfide exposure—can cause communication errors with the main chassis.
Recommended maintenance practices include: performing annual proof tests with simulated field signals to verify all three lanes respond identically; reviewing Tricon diagnostic logs for “INPUT ERROR”, “DIAGNOSTIC FAULT”, or “SYNC LOSS”; and ensuring cabinet environmental conditions remain within spec (temperature <60°C, humidity <80% RH non-condensing). Any spare T8480C must be functionally tested on a certified Tricon test bench—including full TMR synchronization and load validation—before being placed into inventory.

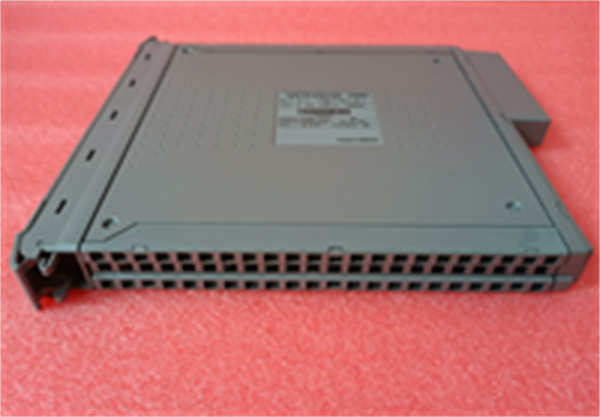

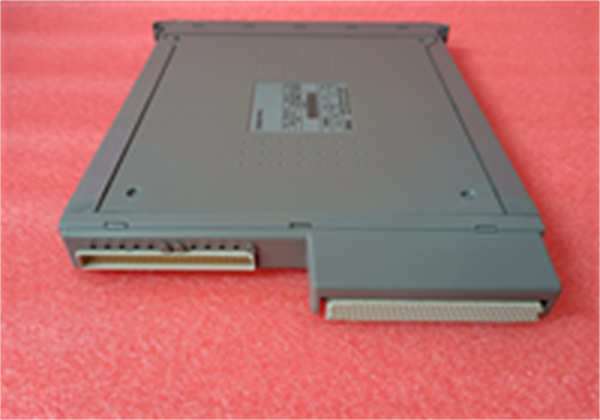

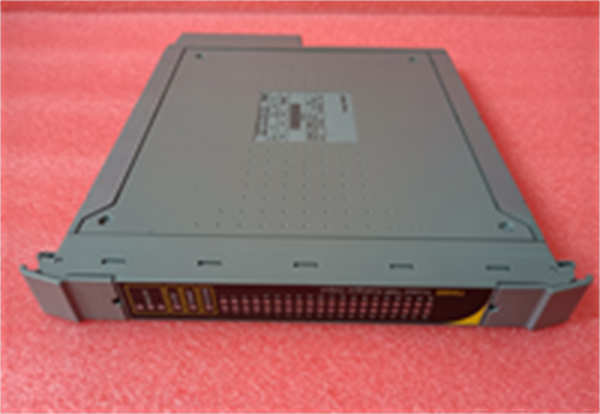

ICS TRIPLEX T8480C
Lifecycle Status and Migration Strategy
Schneider Electric has officially discontinued the T8480C as part of the end-of-life (EOL) roadmap for legacy Tricon V10/V11 hardware. While the Triconex platform remains supported, newer I/O modules (e.g., in the TCM series such as T8480X) have replaced older designs. The T8480C is no longer manufactured, and technical support is restricted to customers with active service agreements.
Continued operation carries significant risk: genuine spares are extremely scarce, prices have surged, and counterfeit units lacking proper TMR calibration have entered the gray market.
Short-term mitigation includes securing only fully tested, traceable spares from authorized channels and implementing a 72-hour hot-standby burn-in test under representative load conditions.
The strategic migration path is to transition to the Triconex CX or Triconex eXtended Architecture (TXS) platforms. These support modern digital input modules (e.g., T8480X) with enhanced diagnostics, secure firmware updates, and compatibility with Triconex Enhanced Diagnostic Monitor (EDM) and Cybersecurity Manager. Migration requires re-engineering the application in Triconex Application Suite (TAS), but preserves the original safety logic structure. Schneider offers comprehensive migration services—including factory acceptance testing (FAT), site cutover, and regulatory documentation—to minimize downtime.
For facilities with operational mandates beyond 2030, this upgrade is not optional—it is essential to maintain functional safety integrity, comply with evolving cybersecurity standards (IEC 62443), and ensure long-term spare parts availability. Proactive planning now avoids forced obsolescence during an unplanned outage.
