ICS Triplex T8451 | Trusted TMR Communication Interface Module | Obsolete Safety System Spare Analysis

  • Model: T8451
  • Brand: ICS Triplex
  • Core Function: Triple-modular redundant (TMR) communication interface module for Trusted™ safety systems, enabling secure data exchange between the TMR logic solver and engineering workstations, HMIs, or asset management systems
  • Lifecycle Status: Discontinued (Obsolete)
  • Procurement Risk: High – no new production; extremely limited verified units available in secondary market with long lead times and premium pricing
  • Critical Role: Provides the only sanctioned communication path for configuration upload, diagnostics, and event logging; failure isolates the safety system from monitoring and maintenance tools, compromising operational visibility and regulatory compliance
Category: SKU: ICS TRIPLEX T8451

Description

Technical Specifications (For Spare Part Verification)

  • Product Model: T8451
  • Manufacturer: ICS Triplex
  • System Family: Trusted™ TMR Safety Instrumented System (SIS)
  • Communication Protocol: Proprietary Trusted protocol over RS-232/RS-485 or Ethernet (variant-dependent)
  • Redundancy Architecture: Fully triplicated hardware and software paths with internal voting
  • Physical Interfaces: Typically DB9 serial (RS-232/485) or RJ45 Ethernet (confirm sub-model)
  • Data Rate: Up to 115.2 kbps (serial) or 10/100 Mbps (Ethernet variants)
  • Backplane Connection: Proprietary Trusted chassis bus (requires compatible T84xx/T94xx mainframe)
  • LED Indicators: Power, OK, Fault, Transmit/Receive activity
  • Isolation: Galvanic isolation between field network and backplane (>500 VAC)
  • Certification: Compliant with IEC 61508 SIL 3 for communication integrity
  • Firmware Dependency: Must match version used in Trusted Workbench project

System Role and Downtime Impact

The ICS Triplex T8451 serves as the critical communication gateway in Trusted TMR safety systems deployed in high-hazard industries such as offshore oil & gas, LNG terminals, and chemical processing plants. It enables secure, fault-tolerant data transfer between the triple-redundant logic solver and external systems—including engineering workstations running Trusted Workbench, operator HMIs, and plant historians. While it does not directly participate in safety trip decisions, its failure has severe operational consequences: engineers lose the ability to download updated logic, retrieve diagnostic logs, or verify system health. During a safety event, the absence of real-time status data can delay root cause analysis and regulatory reporting. In extreme cases, an unresponsive T8451 may trigger false alarms or force manual override procedures. Without a verified spare, restoring communication can take weeks, leaving the safety system effectively “blind” to maintenance personnel.



Reliability Analysis and Common Failure Modes

Despite its TMR architecture, the T8451 is vulnerable to age-related failures common in early industrial communication modules. The most frequent issue is degradation of the serial transceiver ICs (e.g., MAX232-family chips) due to repeated electrostatic discharge (ESD) during cable handling or ground potential shifts—leading to intermittent data corruption or complete link loss. In Ethernet variants, magnetics and PHY controllers can fail due to thermal stress or power supply ripple. Internal flash memory storing protocol firmware may also suffer bit rot after 15+ years, causing boot failures or protocol mismatches with newer workstation software. Additionally, the module’s reliance on precise timing for TMR synchronization makes it sensitive to voltage instability on the backplane.

Key vulnerabilities include:

  • Lack of built-in surge protection on communication ports
  • Firmware version lock—mismatch with Trusted Workbench prevents connection
  • Passive cooling design prone to overheating in densely packed racks

Preventive maintenance recommendations:

  • Use shielded, grounded communication cables with proper ferrite chokes
  • Avoid hot-plugging communication cables; always power down before connection changes
  • Maintain offline backups of entire Trusted project including T8451 configuration
  • Monitor module surface temperature during operation (<60°C recommended)

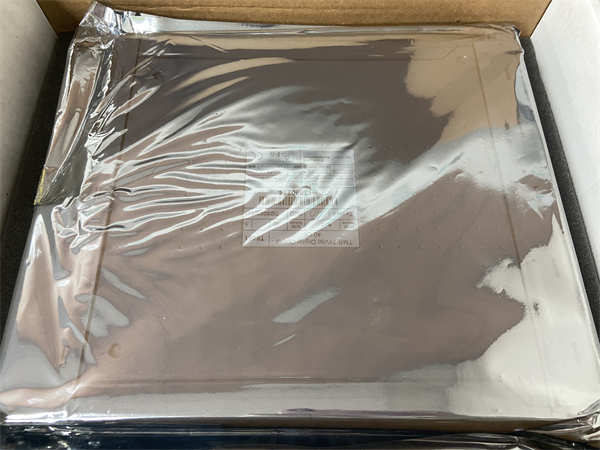

ICS TRIPLEX T8451

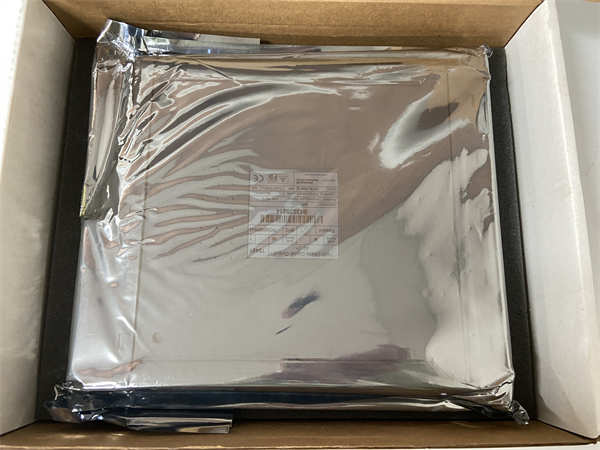

ICS TRIPLEX T8451

Lifecycle Status and Migration Strategy

ICS Triplex discontinued the T8451 as part of the broader retirement of the legacy Trusted platform. Schneider Electric no longer manufactures or supports this module, and official technical documentation is restricted. Remaining units are found only in decommissioned systems or uncertified surplus markets—posing significant risk due to unknown firmware states or latent hardware defects.

As a temporary measure, facilities may:

  • Secure one or more fully tested spares with matching firmware and interface type
  • Implement external fiber-optic isolators to reduce electrical stress on ports
  • Restrict communication access to essential maintenance windows to minimize wear

For long-term viability, migration to the Triconex Trident platform is the strategic path. The equivalent communication module (e.g., MPU-3000CM) provides:

  • Standardized Ethernet/IP and OPC UA interfaces
  • Enhanced cybersecurity (TLS, user authentication, audit logging)
  • Seamless integration with modern asset management systems

Migration entails:

  • Replacing the Trusted mainframe with a Trident chassis
  • Updating engineering workstations to Triconex Enhanced Development Environment (EDE)
  • Reconfiguring communication parameters and firewall rules
  • Revalidating all data exchange paths per IEC 62443 and IEC 61511

Executing this upgrade during planned outages eliminates obsolescence risk while restoring full diagnostic visibility, ensuring continued compliance with functional safety and cybersecurity mandates in critical infrastructure.
