Honeywell SC-UCMX01 | Universal Controller Module | Critical Obsolete Spare Parts Analysis

  • Model: SC-UCMX01
  • Brand: Honeywell
  • Core Function: Primary or redundant controller module in the Experion PKS C300 system, executing regulatory and logic control
  • Lifecycle Status: Obsolete (End-of-Life declared by Honeywell)
  • Procurement Risk: High – limited verified inventory; increasing price volatility and risk of untested units
  • Critical Role: Central processing unit for a C300 controller node; failure results in loss of all associated I/O control and potential process trip
Category: SKU: Honeywell SC-UCMX01 51307195-175

Description

Key Technical Specifications (For Spare Parts Verification)

  • Product Model: SC-UCMX01
  • Manufacturer: Honeywell
  • System Platform: Experion PKS C300 Controller (used in oil & gas, refining, chemicals, and power)
  • Order Code: 51307195-175
  • Redundancy Support: Yes – supports 1:1 hot standby with identical module
  • Processor Architecture: Proprietary embedded real-time processor
  • Memory: Integrated non-volatile program and configuration storage
  • Communication Interfaces: Dual redundant ControlNet links to I/O and peer controllers; serial service port
  • Diagnostic Indicators: Front-panel LEDs for Power, Run, Fault, Redundancy Sync, and Network Status
  • Mounting: Chassis-mounted within C300 controller rack
  • Operating Temperature: 0°C to +60°C

System Role and Downtime Impact

The SC-UCMX01 serves as the central processing engine of the Honeywell C300 controller within the Experion PKS architecture. It executes all control strategies—PID loops, sequence logic, interlocks, and batch recipes—for its assigned I/O domain. In critical applications such as reactor temperature control, compressor surge protection, or boiler safety systems, this module is indispensable. A failure in a non-redundant configuration causes immediate and total loss of control over all connected field devices, typically triggering a process shutdown or safety system intervention. Even in redundant setups, degraded performance or synchronization issues can lead to nuisance trips or reduced operational margins.



Reliability Analysis and Common Failure Modes

Although designed for continuous industrial operation, units beyond 10–12 years exhibit predictable aging characteristics:
  • Flash memory wear-out: Repeated read/write cycles and long-term data retention stress can lead to configuration corruption or boot failures, especially after unexpected power interruptions.
  • Power supply circuit degradation: Onboard voltage regulators and filtering capacitors degrade over time, causing intermittent resets or failure to initialize.
  • Backplane connector fatigue: Thermal cycling induces micro-cracks in solder joints at the edge connector, resulting in communication dropouts or complete module dropout from the chassis.
  • Firmware incompatibility: Older revisions may not support newer I/O modules or security patches, forcing operational compromises.
Recommended preventive maintenance actions include:
  • Performing annual full-system backups via Experion Engineering Builder.
  • Verifying redundancy switchover during planned outages.
  • Inspecting for physical signs of overheating or capacitor bulging during cabinet checks.
  • Maintaining spares in climate-controlled, static-safe storage and powering them quarterly to refresh memory cells.

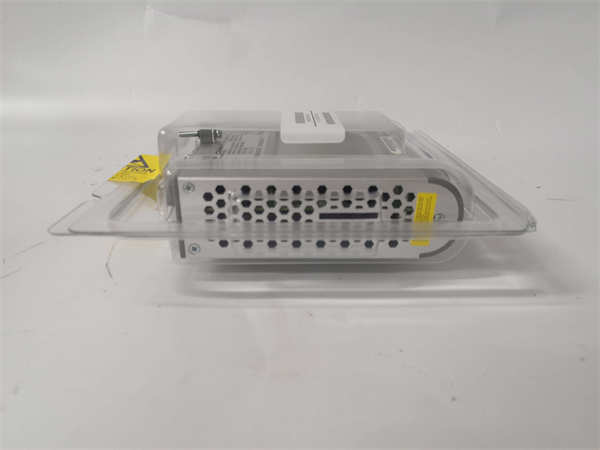

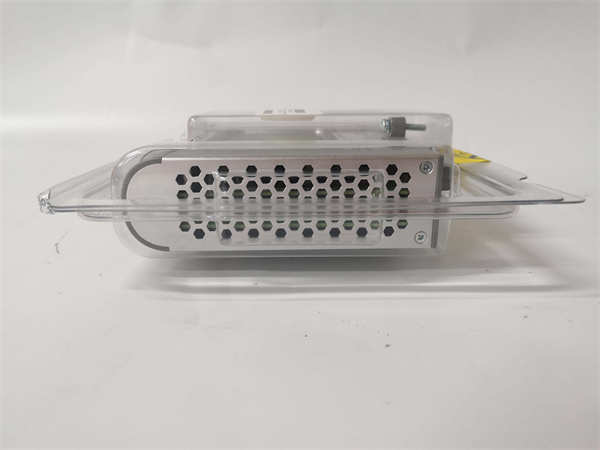

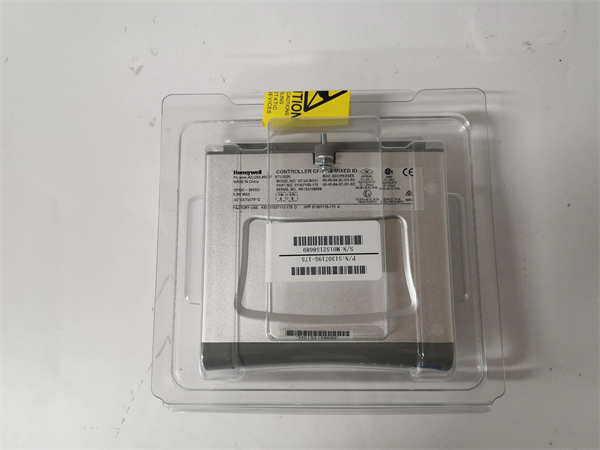

Honeywell SC-UCMX01 51307195-175

Honeywell SC-UCMX01 51307195-175

Lifecycle Status and Migration Strategy

Honeywell has officially discontinued the SC-UCMX01 as part of its product lifecycle roadmap. No new units are manufactured, and factory repair services are no longer available. Continued reliance introduces significant operational risk due to shrinking spare availability and lack of firmware or cybersecurity updates.
Interim mitigation strategies include:
  • Procuring only from vendors who validate full functionality—including boot, redundancy sync, I/O scan, and alarm handling—on live C300 test benches.
  • Maintaining at least two tested spares per critical controller pair.
  • Implementing external UPS protection to minimize power-related stress.
The official migration path is to upgrade to the C300 R4xx series (e.g., SC-UCMX02 or later variants), which offers enhanced processing power, larger memory, improved diagnostics, and extended support. This transition requires:
  • Replacement of the controller chassis and power supplies.
  • Reuse of existing IOMs (I/O Marshalling) and field wiring where compatible.
  • Application recompilation and validation in a supported version of Experion Studio.
For facilities not ready for full controller replacement, a robust spare parts strategy combined with rigorous health monitoring remains essential to avoid unplanned downtime.
