Foxboro P0916PH P0916AL | High-Density Analog Input FBM | Reliable DCS Selection

  • Model: P0916PH / P0916AL
  • Brand: Foxboro (Schneider Electric)
  • Core Positioning: High-density, isolated Analog Input Field Bus Modules (FBM) for I/A Series DCS
  • Lifecycle Status: Active (In-Production)
  • Selection Advantages: 16-channel density, comprehensive signal type support (mA, V, RTD, TC), channel-to-channel isolation, advanced diagnostics, seamless I/A Series integration
  • Applicable Projects: Greenfield process plants, Brownfield DCS migrations, Critical loop monitoring upgrades in Refineries, Chemical, and Power facilities
Category: SKU: P0916PH P0916AL FOXBORO

Description

Key Technical Specifications

  • Product Model: P0916PH, P0916AL
  • Manufacturer: Foxboro (Schneider Electric)
    System: I/A Series Distributed Control System (DCS)
  • Module Type: Field Bus Module (FBM) – Analog Input
  • Channel Count: 16 channels per module (High Density)
  • Input Signal Types: Configurable support for 4-20mA, 0-10V, RTDs (Pt100, etc.), and Thermocouples (J, K, T, E, etc.)
  • Isolation: Channel-to-channel or group isolation (specific to suffix) for superior noise immunity and safety
  • Resolution: 16-bit or higher resolution for precise process measurement
  • Environmental Rating: Industrial grade, wide operating temperature range (-20 to +70 C typical)
  • Redundancy Support: Fully compatible with redundant FBM configurations for critical safety loops
  • Diagnostic Capability: Open wire detection, sensor drift monitoring, module health status, and alarm management
  • Power Requirement: Standard I/A Series backplane power distribution (24V DC)
  • Terminal Block Compatibility: Designed for use with standard I/A Series field termination assemblies (FTAs)

Core Performance and Selection Advantages

The P0916PH and P0916AL modules represent the gold standard for analog signal acquisition in the Foxboro I/A Series architecture, offering system integrators a compelling mix of density, precision, and robustness. Their primary performance advantage is the high channel density; by packing 16 isolated analog inputs into a single FBM slot, they drastically reduce the cabinet footprint compared to legacy 8-channel or discrete modules. This consolidation simplifies wiring, reduces termination points, and lowers the overall cost of panel construction. In terms of signal integrity, these modules feature advanced analog front-end circuitry that provides exceptional noise rejection and high-resolution conversion, ensuring accurate data for critical control loops such as reactor temperatures, distillation column pressures, and flow measurements. The specific isolation architectures (denoted by the PH/AL suffixes) protect the system from ground loops and voltage spikes, enhancing overall plant reliability.
Functionally, these modules act as intelligent data concentrators. They perform local linearization, cold junction compensation (for thermocouples), and scaling, offloading computational tasks from the main controller and ensuring that the control strategy receives engineering-unit-ready data. A key “killer app” feature is their comprehensive diagnostic suite, which continuously monitors field wiring integrity (detecting open sensors, short circuits, and out-of-range conditions) and reports device health to the operator station in real-time. This capability enables a shift from reactive maintenance to predictive strategies, allowing teams to address sensor degradation before it impacts product quality or safety. From a Total Cost of Ownership (TCO) perspective, the P0916 series drives value by minimizing installation time, reducing commissioning efforts through software-based configuration, and lowering spare parts inventory complexity due to their versatile input support. Their proven track record in harsh industrial environments ensures high mean time between failures (MTBF), directly contributing to sustained plant availability.

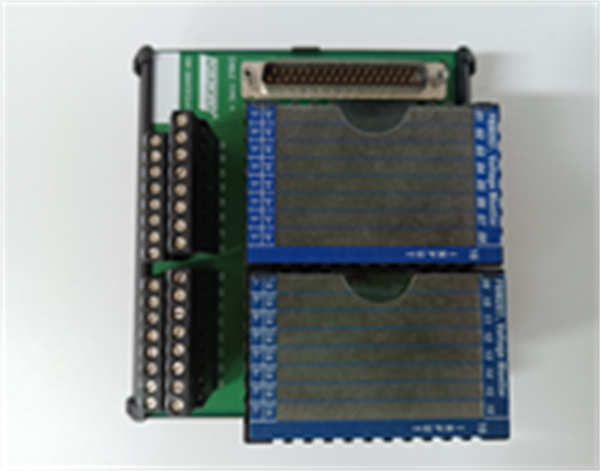

P0916PH P0916AL FOXBORO

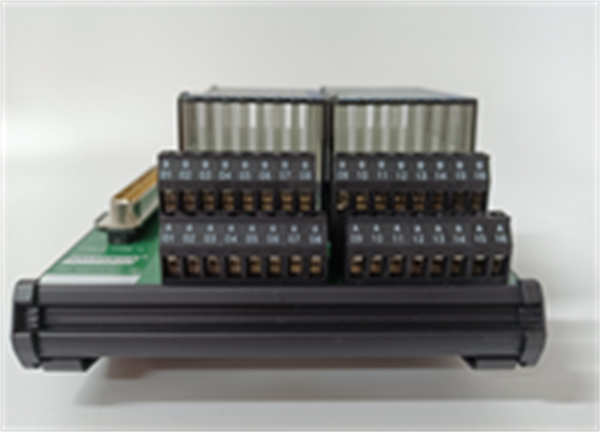

P0916PH P0916AL FOXBORO

System Integration and Extensibility

Integrating the P0916PH and P0916AL into a larger automation architecture is seamless due to their native compatibility with the Foxboro I/A Series software environment, including the System Management Console (SMC) and control strategy configuration tools. Engineers utilize a unified database to map field tags directly to control algorithms, eliminating the need for complex external mapping or third-party drivers. This unified platform accelerates project execution and significantly reduces the risk of configuration errors. The modules communicate over the deterministic, high-speed I/A Series Node Bus, ensuring timely data delivery to the controller. For enterprise connectivity, the rich process data acquired by these modules is aggregated by the DCS and exposed to MES, SCADA, and Historian systems via standard protocols like OPC UA, facilitating real-time visibility and advanced analytics across the organization.
Regarding extensibility, the P0916 series is designed to scale effortlessly with project growth. In a typical I/A Series node, multiple P0916 modules can be deployed alongside other FBM types (discrete, pulse, communication, HART) to create a highly flexible hybrid I/O architecture that meets diverse instrumentation requirements. The system supports robust redundancy schemes; critical analog loops can be configured with redundant P0916 pairs and communication paths to ensure uninterrupted monitoring even in the event of a single module failure. Furthermore, the modular design allows for hot-swapping in many configurations, enabling maintenance or capacity expansion without shutting down the process. This flexibility makes the P0916PH and P0916AL ideal choices for phased plant expansions, where new analog instrumentation can be added to existing control strategies with minimal disruption, ensuring the automation infrastructure evolves in lockstep with production demands.
