Key Technical Specifications (for Spare Part Verification)
- Product Model: MVME55006E-0163
- Manufacturer: Emerson (formerly Motorola)
- System Compatibility: VMEbus systems, typically used in industrial automation, defense, and aerospace
- Processor: PowerPC MPC7457 or MPC7477 @ 1 GHz
- Memory: 512 MB ECC SDRAM (some sources indicate up to 2 GB DDR2)
- Storage: 32 MB + 8 MB soldered flash memory
- Communication Protocols: VME64x, PCI Express, Gigabit Ethernet, 10/100BASE-TX
- I/O Interfaces: 2 x RS-232 serial ports, PMC expansion slots
- Power Requirements: +3.3 VDC ±5% (15 W typical)
- Operating Temperature: -20°C to 60°C (or 0°C to +55°C with forced air cooling)
- Dimensions: 160 mm × 100 mm × 30 mm (W × H × D)
- Weight: 0.7 kg
System Positioning and Downtime Impact
The MVME55006E-0163 module is typically integrated into VMEbus backplanes as the central processing unit of the system. Its primary role is to execute the operating system (often VxWorks or Linux) and application code, managing data acquisition, control logic, and communication with peripheral I/O cards.
Failure of this module directly impacts the entire control system. If it fails, the system loses its central processing capability, resulting in a complete halt of the controlled process. In applications like medical imaging (MRI/CT scanners), defense systems, or industrial automation lines, its failure can cause significant operational downtime, data loss, or safety incidents. Since it is the main CPU, there is no redundancy at the board level, making it a single point of failure in the control architecture.
Reliability Analysis and Common Failure Points
Common Failure Modes:
This module typically fails due to component aging, particularly electrolytic capacitors in the power supply section, leading to voltage instability and boot failures. The processor and memory chips are susceptible to thermal stress, especially if the forced air cooling system is compromised. The PMC expansion connectors and VMEbus edge connectors can suffer from oxidation or physical damage due to repeated insertion/removal. Firmware corruption in the flash memory is also a common issue, often caused by power interruptions or improper shutdowns.
Weaknesses:
The design relies on older semiconductor technology (PowerPC G4), which may have lower tolerance to modern electrical noise levels compared to newer ARM or x86-based processors. The module’s high power density (15W) makes it sensitive to inadequate cooling; insufficient airflow can quickly lead to thermal shutdown or permanent damage. The reliance on soldered flash memory for boot code makes it vulnerable to data corruption, and recovery often requires specialized tools.
Preventive Maintenance Recommendations:
Regularly inspect the module for signs of overheating (discoloration) or capacitor bulging. Ensure the forced air cooling system is functioning correctly and that air filters are clean. Back up the configuration parameters and firmware regularly, as the module may lose settings during a power failure. Check for loose connections on the PMC mezzanine cards and ensure the VMEbus backplane is clean. Monitor the front-panel LEDs (Power, HDD, LAN) for any abnormal status indicators.

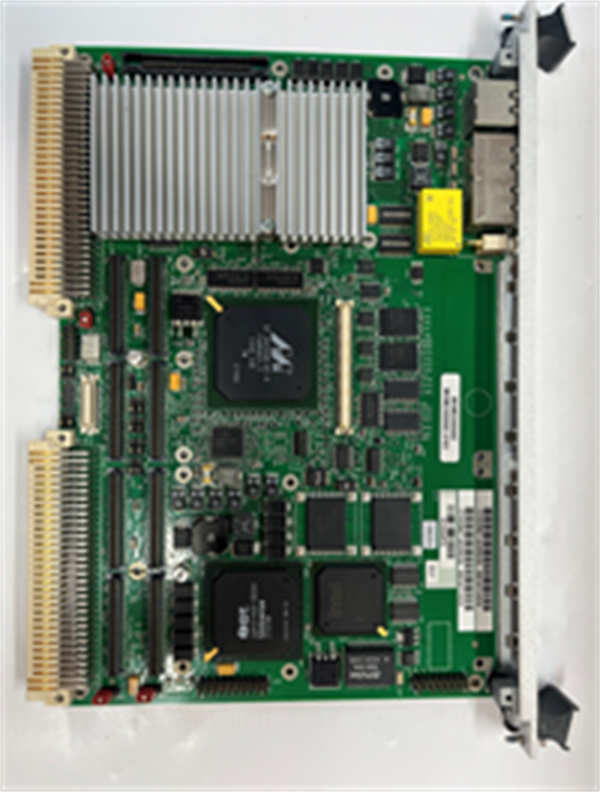

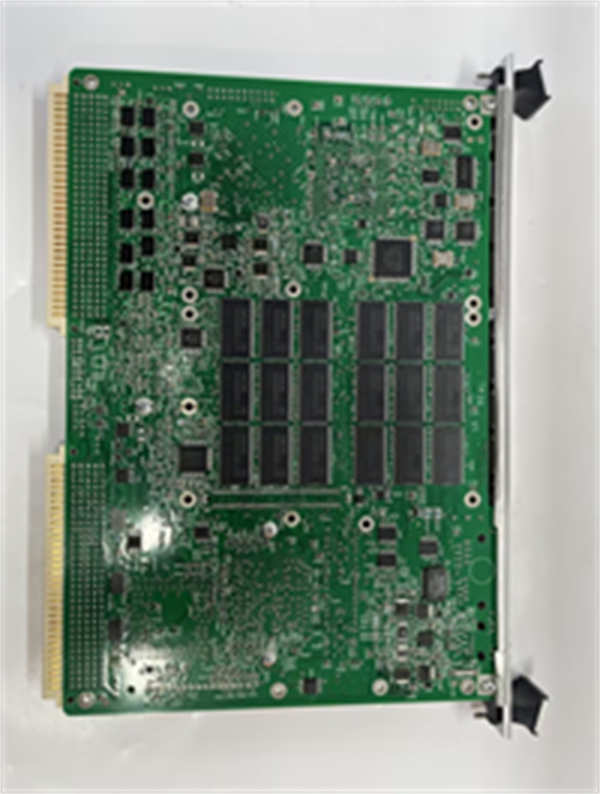

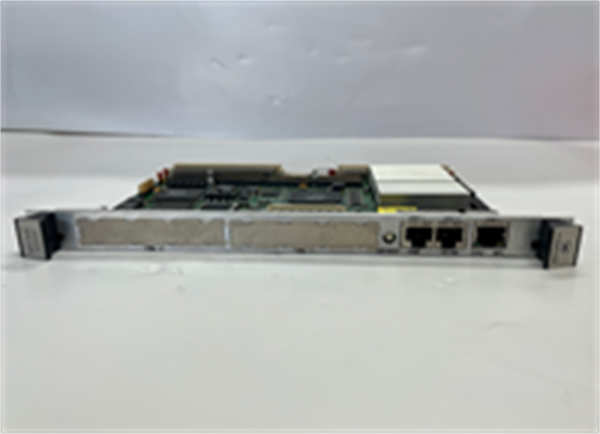

MVME55006E-0163 EMERSON
Lifecycle and Migration Strategy
Official Status and Risks:
Emerson has officially discontinued production of the MVME55006E-0163 module. Continuing to use it poses significant operational risks, including the inability to source genuine spare parts, escalating costs on the gray market, and a complete lack of technical support for troubleshooting or firmware updates. There is also a high risk of receiving counterfeit or refurbished parts that do not meet original performance specifications, potentially causing unexpected downtime or compatibility issues.
Temporary Solutions:
If immediate replacement is not feasible, sourcing refurbished units from reputable suppliers can provide a temporary fix. However, this carries the risk of shorter lifespan and potential compatibility issues. Board-level repair services may be available for minor component failures (like capacitor replacement), but this is not a long-term solution for critical systems. Maintaining a cold spare (a tested backup module) on-site is the most reliable temporary mitigation strategy.
Migration/Replacement Path:
Emerson’s recommended upgrade path involves migrating to modern VMEbus or VPX-based single-board computers, such as the MVME6100 series or newer Power Architecture-based boards. Modern equivalents offer enhanced processing power, lower power consumption, and support for contemporary communication protocols. Migration requires updating the operating system (BSP) and recompiling the application code, as the processor architecture may differ. For some applications, a complete system migration to a modern industrial PC or PLC-based system may be more cost-effective in the long run.
