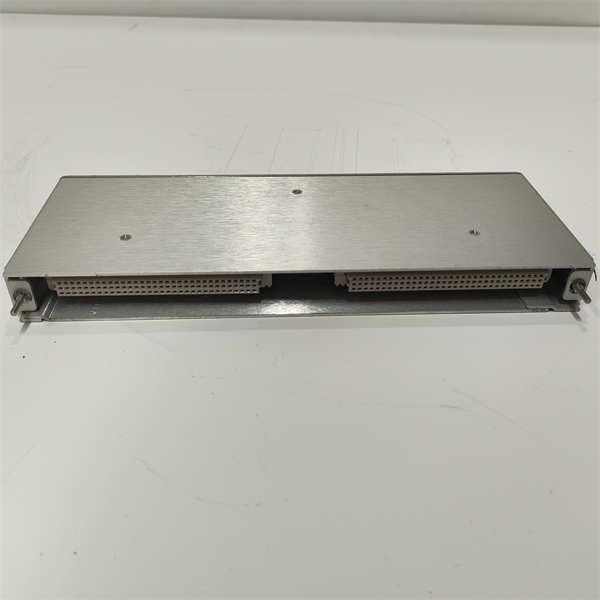

BENTLY NEVADA 3500/92 136188-01 | Communication Gateway Module | Obsolete Machinery Protection Hardware

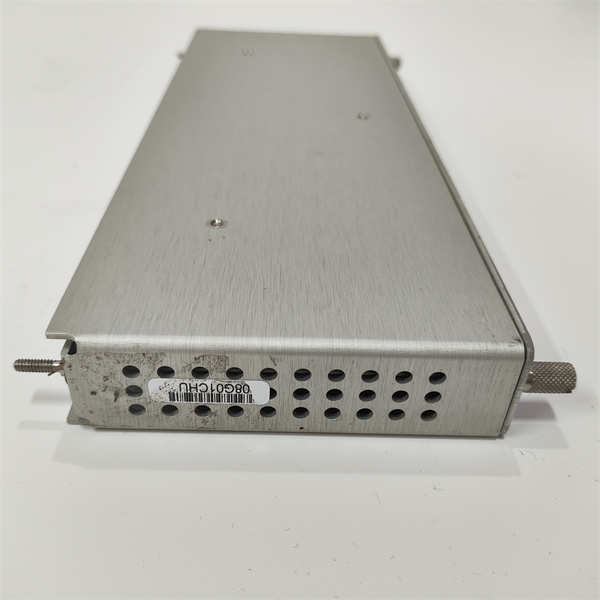

BENTLY NEVADA 3500/92 136188-01 | Communication Gateway Module | Obsolete Machinery Protection Hardware - Image 2

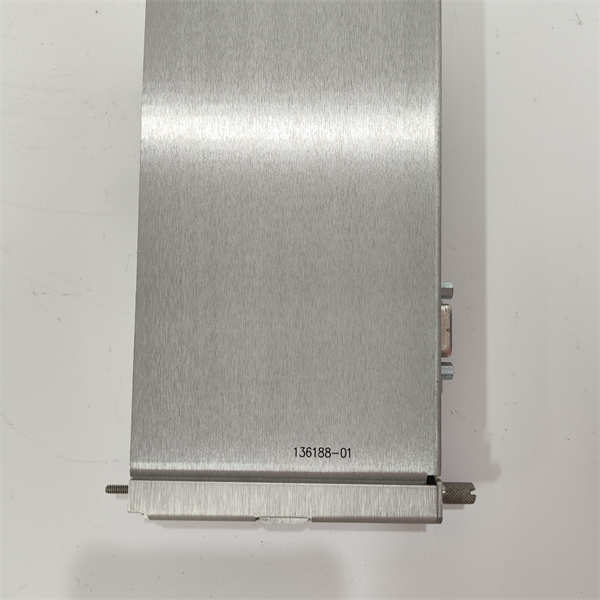

BENTLY NEVADA 3500/92 136188-01 | Communication Gateway Module | Obsolete Machinery Protection Hardware - Image 3
BENTLY NEVADA 3500/92 136188-01 | Communication Gateway Module | Obsolete Machinery Protection Hardware - Image 4

BENTLY NEVADA 3500/92 136188-01 | Communication Gateway Module | Obsolete Machinery Protection Hardware

  • Model: 3500/92 136188-01
  • Brand: Bently Nevada (a Baker Hughes business)
  • Core Function: Communication Gateway Module for 3500 machinery protection system—provides serial host interface (Modbus RTU, RS-232/485) for data and alarm transmission
  • Lifecycle Status: Obsolete (Discontinued; superseded by Ethernet-enabled 3500/92e and 3500/25e modules)
  • Procurement Risk: Very High (No new production; limited to aging surplus with firmware and compatibility risks)
  • Critical Role: Enables integration of the 3500 system with DCS, PLC, HMI, or historian platforms; failure results in loss of real-time vibration data, alarms, and trip status—compromising machinery protection visibility
Category: SKU: BENTLY NEVADA 3500-92 136188-01

Description

Key Technical Specifications (For Spare Parts Verification)

  • Product Model: 3500/92
  • Manufacturer Part Number: 136188-01
  • Manufacturer: Bently Nevada (Baker Hughes)
  • System Platform: 3500 Machinery Protection System
  • Module Type: Communication Gateway (Serial Interface)
  • Communication Protocols: Modbus RTU (primary), RS-232 (configuration), RS-485 (multi-drop host link)
  • Baud Rate: Configurable up to 38.4 kbps
  • Data Content: Real-time monitor values, alarm states, module status, trip relay status
  • Redundancy: Optional dual-module configuration (requires two 3500/92 modules and Y-cable)
  • Mounting: Occupies one I/O slot in 3500 chassis (typically Slot 2 or higher)
  • Configuration Tool: 3500 Rack Configuration Software (RCS) via RS-232 port

System Role and Downtime Impact

The 3500/92 module serves as the primary data conduit between the Bently Nevada 3500 rack and external control or monitoring systems. It transmits critical machinery health information—including shaft vibration, bearing temperature, and trip relay status—to plant DCS or SCADA platforms, enabling operator awareness and automated responses. In many installations, it is the only path for alarm annunciation outside the local rack display. If the 3500/92 fails, the host system loses all real-time data from the 3500 rack, even if internal protection logic remains functional. This creates a dangerous “blind spot”: trips may still occur locally, but operators receive no warning, delay response, or misdiagnose the root cause. In non-redundant configurations—which are common—the failure necessitates immediate replacement to restore situational awareness. Re-commissioning requires reconfiguration via legacy RCS software, correct baud rate and register mapping, and validation of Modbus polling—tasks complicated by spare part scarcity and outdated PC environments.



Reliability Analysis and Common Failure Modes

Deployed widely from the late 1990s through the 2000s, the 3500/92 is now susceptible to age-related failures. The most common issues include:
  • Serial transceiver IC failure (e.g., MAX485 chips), causing complete or intermittent loss of Modbus communication—often mistaken for cabling or DCS-side faults.
  • EEPROM corruption, leading to loss of configuration settings after power cycles, requiring re-download via RS-232.
  • Oscillator drift or crystal failure, resulting in baud rate mismatch and garbled data on the host side.
  • Power regulation capacitor degradation, causing internal voltage instability and sporadic module resets.
  • Corrosion on DB9 or terminal block connectors, increasing contact resistance and signal noise.
A key vulnerability is the lack of built-in diagnostics for communication health; the module reports “OK” internally even when Modbus traffic is failing externally. Preventive measures include periodic verification of Modbus data integrity using a protocol analyzer, inspection of firmware version consistency across spares, and ensuring clean, stable power to the 3500 chassis.
BENTLY NEVADA 3500-92 136188-01

BENTLY NEVADA 3500-92 136188-01

Lifecycle Status and Migration Strategy

Bently Nevada has discontinued the 3500/92 (136188-01) in favor of modern Ethernet-based alternatives such as the 3500/92e or 3500/25e Communications Gateway. No new units are available through official channels. Continued reliance on this module introduces significant operational risk: untested surplus may fail under load, firmware mismatches can cause register map errors, and integration with modern IT/OT networks is hindered by the lack of TCP/IP support.
Short-term mitigation includes:
  • Sourcing only from vendors providing full functional test reports, including live Modbus polling validation
  • Maintaining a verified spare configured identically to the installed unit
  • Implementing redundant 3500/92 modules where chassis space allows
Long-term, the recommended path is migration to the 3500/92e (part number 146690-01) or 3500/25e, which offer:
  • Native Ethernet (Modbus TCP, OPC UA) connectivity
  • Web-based configuration and diagnostics
  • Secure firmware updates and network integration
  • Compatibility with modern asset performance management (APM) platforms
Migration typically requires updating the 3500 framework software, reconfiguring communication parameters, and validating data mapping—but eliminates dependency on obsolete serial infrastructure and ensures ongoing compliance with API 670 and cybersecurity best practices for critical rotating equipment.
