Bently Nevada 3500/15 | Enhanced Keyphasor Module | Obsolete Critical Spare for Machinery Monitoring

  • Model: 3500/15 (common part numbers: 135444-01, 135444-02)
  • Brand: Bently Nevada (a Baker Hughes company)
  • Core Function: Enhanced Keyphasor Module for phase reference and speed input in the 3500 machinery protection system
  • Lifecycle Status: Discontinued (Obsolete)
  • Procurement Risk: High – no longer in production; limited to secondary market with concerns over authenticity, testing status, and price escalation
  • Critical Role: Provides once-per-revolution timing reference essential for vibration analysis, orbit plots, and shaft balancing; failure degrades diagnostic accuracy and may disable trip logic dependent on phase data
Category: SKU: Bently Nevada 3500/15

Description

Technical Specifications (For Spare Verification)

  • Product Model: 3500/15 Enhanced Keyphasor Module
  • Manufacturer: Bently Nevada
  • System Family: 3500 Machinery Protection System
  • Input Channels: 2 independent Keyphasor inputs (accepts proximity probe or magnetic pickup signals)
  • Output: Digital timing pulses and speed data transmitted via backplane to 3500/40, /42, /45, and other monitoring modules
  • Compatibility: Requires 3500/20 or /22 Rack Interface Module; works with all standard 3500 frameworks
  • Power Supply: +24 VDC from 3500 backplane
  • Form Factor: Single-slot module (approx. 20 mm wide)
  • Diagnostic Features: Front-panel LEDs for power, OK status, and per-channel signal detection
  • Firmware Dependency: Must be compatible with rack firmware version; mismatch can cause “Invalid Module” faults

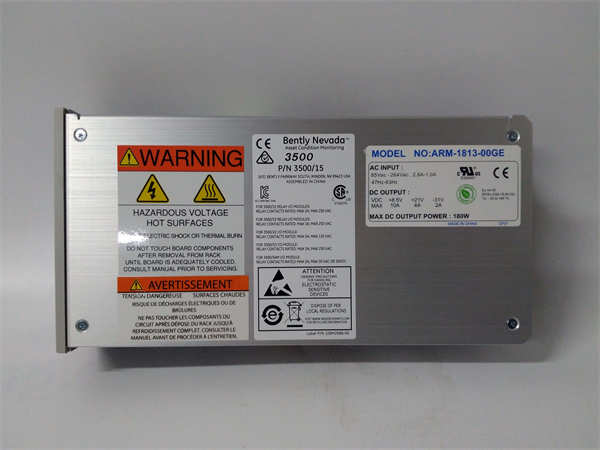

Bently Nevada 3500/15

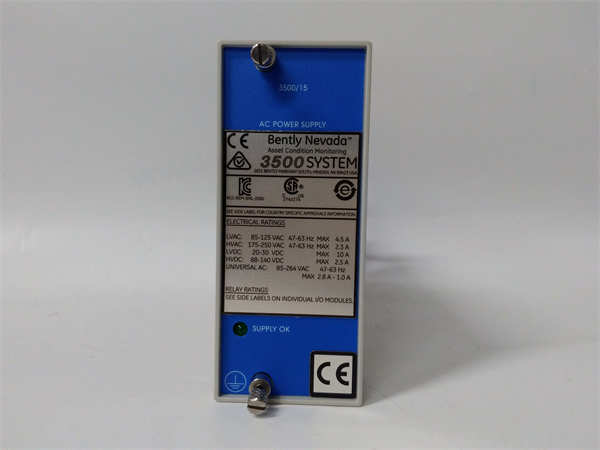

Bently Nevada 3500/15



System Role and Downtime Impact

The Bently Nevada 3500/15 serves as the primary source of rotational phase reference in legacy 3500 systems deployed on critical rotating assets such as steam turbines, centrifugal compressors, and generators. It converts raw once-per-turn sensor signals into precise digital timing markers used by vibration monitors to generate orbit plots, perform order analysis, and execute dynamic balancing. While not always part of the hardwired trip chain, loss of valid Keyphasor input severely compromises condition monitoring capabilities and may inhibit startup sequences that require verified speed and phase data. In some configurations—particularly those using API 670-compliant overspeed detection—the 3500/15 output is integrated into voting logic, meaning its failure could contribute to a spurious trip or, worse, mask a real fault. Replacement requires physical module swap and verification of signal integrity; there is no field repair option.



Reliability Analysis and Common Failure Modes

Despite robust industrial design, the 3500/15 is vulnerable to several failure mechanisms after decades of service:

  • Degradation of front-end signal conditioning circuits due to sustained exposure to electrical noise from nearby high-voltage equipment or VFDs.
  • Damage to input protection diodes from voltage transients (e.g., during lightning strikes or switching surges), leading to clipped or missing Keyphasor pulses.
  • Intermittent backplane communication caused by oxidation or mechanical wear on connector pins—often resulting in sporadic “Module Fault” alarms that clear on reboot but recur under thermal stress.

A notable design limitation is the lack of built-in signal quality diagnostics; unlike newer modules (e.g., 3500/53), it cannot report signal amplitude or noise margin. Early units also exhibited sensitivity to ground loops when installed in multi-machine skids with poor grounding practices.

Recommended preventive actions include:

  • Annual inspection of Keyphasor waveform integrity using an oscilloscope during planned outages.
  • Verification of shield continuity and single-point grounding on sensor cabling.
  • Cleaning of module edge connectors with contact enhancer during maintenance windows.
  • Storage of spares in ESD-safe, climate-controlled environments to prevent latent component drift.

Bently Nevada 3500/15

Bently Nevada 3500/15



Lifecycle Status and Migration Strategy

Bently Nevada has formally discontinued the 3500/15 Enhanced Keyphasor Module. Although the broader 3500 platform remains supported, this specific module is no longer available through official distribution channels. The global inventory of tested, functional units is dwindling, and unverified units from third-party suppliers carry significant risk of early failure or configuration incompatibility.

As an interim measure, operators should:

  • Secure at least one fully tested spare per critical machine train.
  • Partner with qualified vendors offering board-level reconditioning, including replacement of aging capacitors and reflow of solder joints.
  • Cross-check module serial numbers against known counterfeit batches reported in industry alerts.

For sustainable operation, Bently Nevada recommends migrating to the 3500/53 Enhanced Speed Measurement Module (part number 135640-01), which integrates Keyphasor functionality with advanced diagnostics, improved noise immunity, and compatibility with modern 3500 frameworks. This upgrade typically involves:

  • Replacing the 3500/15 with a 3500/53 module.
  • Updating the rack configuration using 3500 Rack Configuration Software (RCS).
  • Retaining existing proximity probes or magnetic pickups—no sensor replacement required.

Facilities managing multiple legacy assets should develop a phased migration roadmap to consolidate spares, reduce lifecycle risk, and align with long-term asset integrity programs. Until then, rigorous validation of existing 3500/15 modules remains essential to ensure reliable machinery health monitoring.
