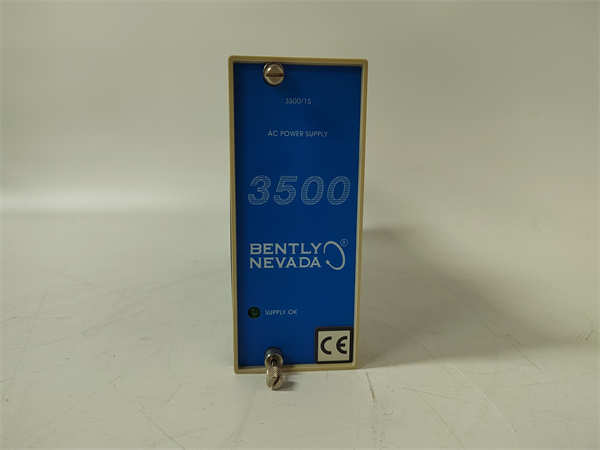

BENTLY 3500-15 127610-01 | 3500/15 Power Supply Module | Obsolete Machinery Protection Spare Analysis

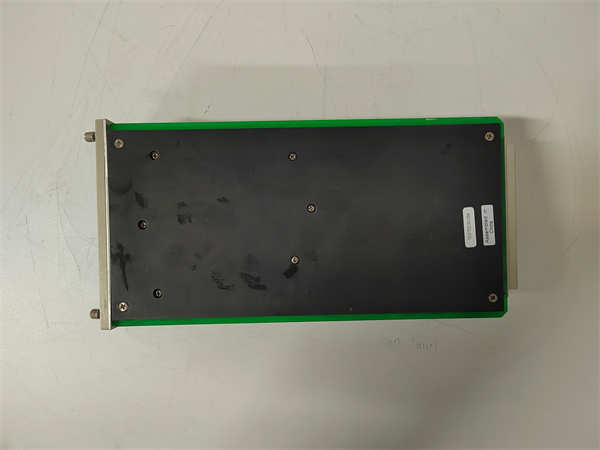

BENTLY 3500-15 127610-01 | 3500/15 Power Supply Module | Obsolete Machinery Protection Spare Analysis - Image 2

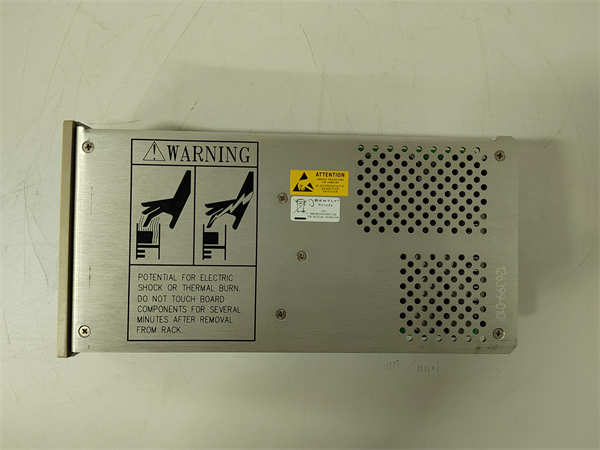

BENTLY 3500-15 127610-01 | 3500/15 Power Supply Module | Obsolete Machinery Protection Spare Analysis - Image 3
BENTLY 3500-15 127610-01 | 3500/15 Power Supply Module | Obsolete Machinery Protection Spare Analysis - Image 4

BENTLY 3500-15 127610-01 | 3500/15 Power Supply Module | Obsolete Machinery Protection Spare Analysis

  • Model: 3500-15 127610-01
  • Brand: Bently Nevada (a Baker Hughes business)
  • Core Function: Primary power supply module for the 3500 machinery protection system, converting AC or DC input into regulated voltages for the backplane and all I/O modules in the rack
  • Lifecycle Status: Discontinued (Obsolete)
  • Procurement Risk: High – no new production; limited verified units available through specialized surplus channels with extended lead times and significant price volatility
  • Key Role: Provides stable, redundant power to the entire 3500 rack; failure can cause complete loss of machinery monitoring and protection, leading to unplanned turbine or compressor shutdowns
Category: SKU: BENTLY 3500-15 127610-01

Description

Technical Specifications (For Spare Part Verification)

  • Product Model: 3500/15
  • Manufacturer: Bently Nevada
  • Part Number: 127610-01
  • System Family: 3500 Machinery Protection System
  • Input Voltage Options:
    • AC: 85–264 VAC, 47–63 Hz
    • DC: 88–300 VDC (field-selectable via internal jumper)
  • Output Voltages:
    • +5 VDC @ 10 A (logic/backplane)
    • ±15 VDC @ 1.5 A each (analog circuits)
    • Isolated, regulated, with overvoltage and overcurrent protection
  • Redundancy: Supports dual-module (1+1) hot-swappable redundancy via shared backplane bus
  • Efficiency: >80% typical
  • Cooling: Convection-cooled (no fan), designed for continuous operation in 0°C to +65°C ambient
  • Diagnostic Features: LED indicators for Power Good, Fault, and Input OK; communicates status to 3500/50 or 3500/53 modules
  • Mounting: Slide-in module occupying one slot in standard 3500 rack (e.g., 3500/05)
  • Safety Certification: Suitable for use in SIL 2 applications when deployed in redundant configuration per IEC 61508

System Role and Downtime Impact

The BENTLY 3500/15 (127610-01) is the electrical backbone of the 3500 machinery protection system, widely deployed in gas turbines, steam turbines, centrifugal compressors, and generators across power generation, oil & gas, and refining industries. It powers all monitoring and protection modules—including vibration, position, speed, and temperature interfaces—that safeguard multi-million-dollar rotating assets. In a redundant configuration, two 3500/15 units share the load, allowing one to fail without system impact. However, in non-redundant racks or degraded redundant setups, a single power supply failure results in immediate loss of all 3500 functions: alarms freeze, trip relays de-energize, and operators lose real-time machinery health data. This can trigger an automatic process shutdown or, worse, leave equipment unprotected during a developing fault—posing serious safety and financial consequences.



Reliability Analysis and Common Failure Modes

Despite its robust industrial design, the 3500/15 is subject to predictable wear mechanisms after 15–20 years of service. The most common failure mode involves degradation of electrolytic capacitors in the primary and secondary filtering stages, leading to increased output ripple, voltage droop under load, or thermal shutdown. Internal switching components (MOSFETs, diodes) may also fatigue due to thermal cycling, causing intermittent output or complete dropout. Additionally, the input transient protection circuitry can degrade after repeated exposure to plant-level surges, reducing immunity to future events.

Key design limitations include:

  • No user-serviceable components—entire module must be replaced upon failure
  • Sensitivity to restricted airflow in densely packed cabinets, accelerating thermal stress
  • Dependence on clean input power; sustained brownouts or harmonic distortion reduce lifespan

Preventive maintenance recommendations:

  • Perform annual thermographic inspection of power supply vents and terminal blocks
  • Measure output voltages under full rack load during scheduled outages (deviation >±3% warrants replacement)
  • Verify redundancy by simulating failure of one unit and confirming seamless switchover
  • Store spares in climate-controlled, anti-static packaging with desiccant
BENTLY 3500-15 127610-01

BENTLY 3500-15 127610-01

Lifecycle Status and Migration Strategy

Bently Nevada has discontinued the 3500/15 (127610-01) as part of the broader lifecycle transition toward modern platforms. While some variants remain listed, this specific revision is no longer manufactured, and factory support is limited. Continuing to operate on legacy power supplies introduces significant risk: lack of calibration traceability, inability to obtain genuine replacements during emergencies, and increasing mean time to repair.

As a temporary measure, facilities may:

  • Secure at least one fully tested spare per critical 3500 rack
  • Implement external power quality monitoring to detect early signs of instability
  • Ensure all racks are configured with dual 3500/15 units to maintain redundancy

For long-term sustainability, Baker Hughes recommends upgrading to the 3500/15R (Redundant Enhanced Power Supply, part number 146789-01), which features:

  • Improved capacitor lifetime and wider input tolerance
  • Enhanced diagnostic communication with 3500/53 monitor modules
  • Continued availability and technical support through 2030+

Migration requires:

  • Replacing the module in the existing 3500 rack (mechanically and electrically compatible)
  • Updating configuration in Rack Configuration Software (RCS) if firmware versions differ
  • Revalidating power redundancy and alarm logic

For sites planning comprehensive modernization, the Bently Nevada System 1 platform offers a future-proof alternative with integrated edge analytics, cybersecurity features, and cloud connectivity—though this entails full system redesign. Until then, proactive sparing and rigorous maintenance of the 3500/15 remain essential to ensuring uninterrupted machinery protection in critical industrial operations.
