Bently Nevada 135473-01 | 3500/25 Enhanced Keyphasor Module | Obsolete Spare Parts & Risk Analysis

  • Model: 135473-01
  • Brand: Bently Nevada (a Baker Hughes company)
  • Core Function: Dual-channel Enhanced Keyphasor module for 3500 machinery protection system, providing precise phase reference and speed signals for vibration analysis and trip logic
  • Lifecycle Status: Obsolete – superseded by newer 3500/25 variants; no longer in active production
  • Procurement Risk: High – genuine units are limited to verified surplus or decommissioned inventory; pricing is volatile and lead times uncertain
  • Critical Role: Primary source of rotational timing reference for the entire 3500 rack; failure compromises shaft position detection, speed calculation, and dynamic vibration diagnostics—potentially disabling critical trip functions on turbines, compressors, or pumps
Category: SKU: Bently Nevada 135473-01

Description

Key Technical Specifications (For Spare Part Verification)

  • Product Model: 135473-01
  • Manufacturer: Bently Nevada
  • System Compatibility: 3500 Machinery Protection System (requires 3500/22 or 3500/20 interface modules for backplane communication)
  • Input Channels: 2 independent Keyphasor inputs
  • Input Signal Type: TTL, proximity probe (–2 VDC to –18 VDC), or magnetic pickup (±10 VAC)
  • Frequency Range: 0.5 Hz to 10 kHz
  • Output: Buffered Keyphasor signals distributed to other 3500 modules (e.g., 3500/42M, 3500/44)
  • Diagnostic Features: Channel OK LEDs, alarm relay outputs, and internal self-tests
  • Mounting: Occupies one half-height slot in 3500 chassis
  • Redundancy Support: Can be configured in redundant pairs for critical applications
  • Compliance: Designed for use in safety-related functions (supports SIL 2/3 when integrated per IEC 61508/61511)

System Role and Downtime Impact

The 135473-01 serves as the timing backbone of the Bently Nevada 3500 system. It processes once-per-revolution (or multi-per-rev) signals from Keyphasor probes to generate precise tachometer and phase reference data used by vibration monitoring and protection modules. Without a valid Keyphasor signal, advanced diagnostics such as orbit plots, Bode plots, and polar maps become unavailable, and more critically, overspeed and zero-speed protection functions may be inhibited. In rotating equipment like steam turbines or centrifugal compressors, this can result in catastrophic mechanical failure if a trip condition goes undetected. Even in non-trip applications, loss of Keyphasor data degrades predictive maintenance capabilities, increasing risk of unplanned outages.



Reliability Analysis and Common Failure Modes

Although engineered for industrial environments, the 135473-01 exhibits predictable aging issues common to early-2000s analog signal conditioners. The most frequent failure mode is input circuit drift due to aging operational amplifiers or resistor networks, leading to missed pulses or false triggering—especially with low-amplitude proximity probe signals. Power supply capacitor degradation on the internal DC-DC converter can cause intermittent resets or unstable output buffering. Additionally, connector pin corrosion at the rear I/O terminal block may introduce noise or open circuits, particularly in high-humidity or corrosive atmospheres.

A key design limitation is sensitivity to signal rise time and amplitude; units fed by degraded or improperly gapped probes are more prone to erratic behavior. The module lacks onboard configuration memory, so settings are defined via dip switches—making misconfiguration during replacement a potential human error risk.

Recommended preventive practices include:

  • Verifying Keyphasor pulse integrity with an oscilloscope during routine maintenance
  • Cross-checking speed readings against independent tachometers or control system values
  • Monitoring 3500 Rack Configuration Software (RCS) for “Keyphasor fault” or “signal invalid” alarms
  • Storing spares in static-safe, dry environments to prevent component aging

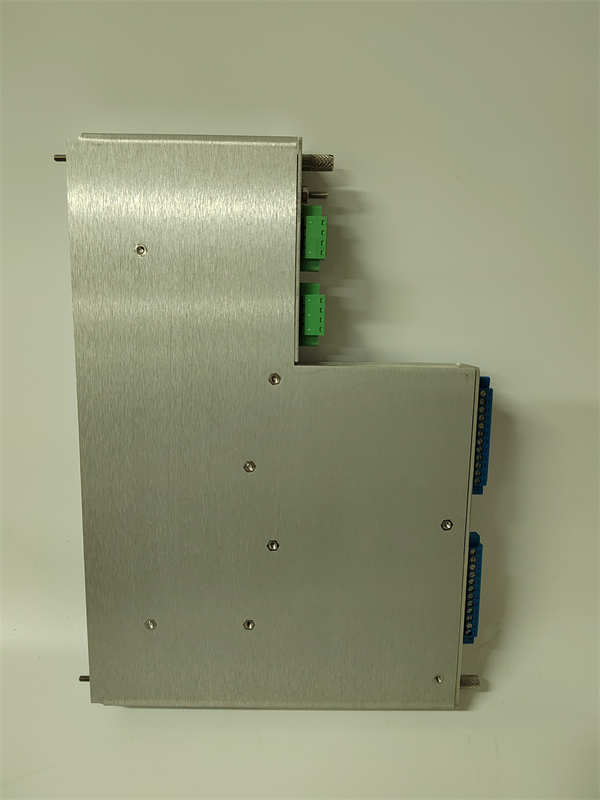

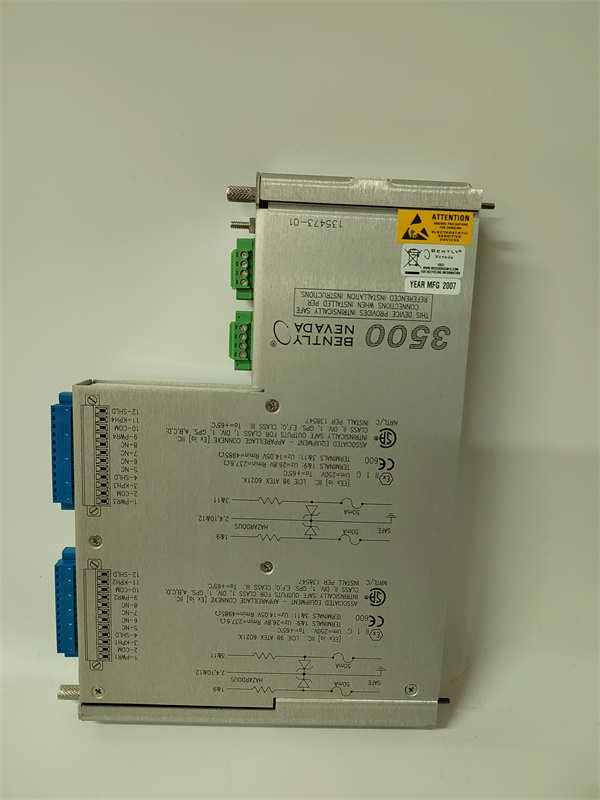

Bently Nevada 135473-01

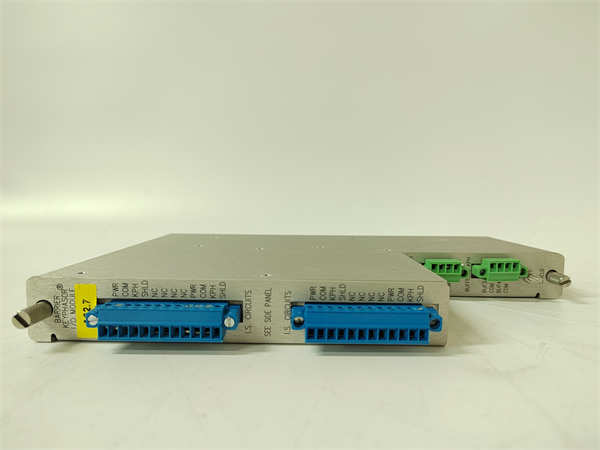

Bently Nevada 135473-01

Lifecycle Status and Migration Strategy

Bently Nevada has formally obsoleted the 135473-01, replacing it with updated 3500/25 models featuring enhanced diagnostics and broader signal compatibility. While some legacy support may exist through service partners, new production has ceased, and official repair services are limited. Continued reliance increases exposure to extended downtime and challenges in meeting modern functional safety audit requirements.

Short-term risk mitigation includes:

  • Securing multiple tested spares with matching hardware revisions and verified signal response
  • Documenting probe gap settings, signal amplitudes, and dip switch configurations
  • Validating redundancy behavior (if configured) in a test rack

For long-term continuity, Bently Nevada supports migration within the 3500 platform using the 3500/25 Enhanced Keyphasor Module (current revision), which maintains backward compatibility with existing probes and chassis. Replacement typically involves:

  • Swapping the module without rewiring, provided input signal types match
  • Updating 3500 Rack Configuration Software to recognize the new hardware ID
  • Revalidating overspeed and zero-speed trip logic per API 670

For facilities planning broader digital transformation, integration with System 1 or Asset Performance Management (APM) platforms enables enhanced analytics and remote monitoring. While the 135473-01 itself cannot be directly upgraded, its functional role can be preserved through compatible successors, ensuring continued machinery protection while restoring access to technical support and spare parts availability.
