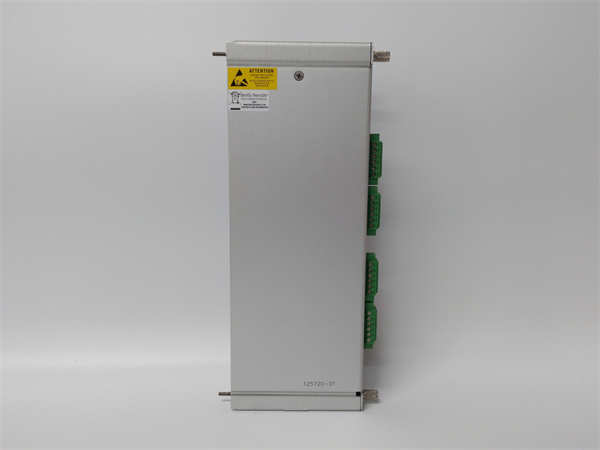

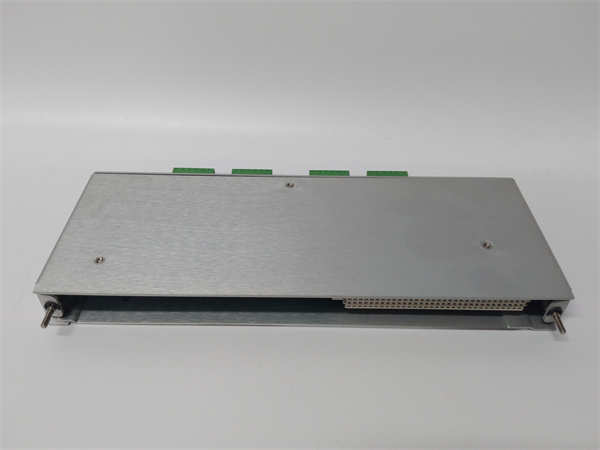

Bently Nevada 125720-01 | Keyphasor Signal Conditioner | New Project Machinery Protection Selection

Description

Key Technical Specifications

• Product Model: 125720-01
• Manufacturer: Bently Nevada (Emerson Automation Solutions)
• System Platform: 3500 Machinery Protection System
• Module Type: 3500/25 Keyphasor Input Module
• Number of Channels: 4 (each supports primary and redundant Keyphasor inputs)
• Input Signal Range: –24 to +24 VDC (compatible with standard proximity probe outputs)
• Output: Digital timing pulses synchronized to shaft rotation; used by 3500 monitor modules (e.g., 3500/42, /44)
• Diagnostic Features: Per-channel OK/fault status, input signal health monitoring, front-panel LEDs
• Safety Certification: IEC 61508 SIL2, API 670 compliant
• Mounting: Plug-in module for 3500 rack (supports hot-swap)
• Power: Supplied via 3500 backplane (no external power required)

Core Performance and Selection Advantages

The Bently Nevada 125720-01 delivers critical value in machinery protection applications by providing highly reliable, deterministic Keyphasor reference signals—essential for accurate vibration analysis, speed measurement, and rotor dynamic diagnostics. Unlike generic digital input modules, it is purpose-built for the unique electrical and timing characteristics of proximity probe signals, ensuring clean pulse generation even under noisy industrial conditions. Compared to older single-channel designs, its 4-channel density reduces rack space and wiring complexity while maintaining full redundancy per channel, a key requirement in SIL2-certified safety instrumented systems.

A major performance advantage lies in its dual-input architecture per channel: each Keyphasor input can accept both a primary and a backup probe signal, with automatic switchover if the primary fails. This eliminates single points of failure without requiring external logic or relays. Additionally, the module performs real-time signal validation—detecting open circuits, short circuits, or out-of-range voltages—and reports faults directly to the 3500 system controller, enabling predictive maintenance and reducing nuisance trips.

From a total cost of ownership (TCO) perspective, the 125720-01 reduces engineering effort through seamless integration with the 3500 ecosystem—no custom signal conditioning or external isolators are needed. Its hot-swap capability allows replacement during operation, minimizing downtime during maintenance. Furthermore, because it is part of a globally standardized platform (API 670), it simplifies spares management and technician training across multi-site operations. For projects requiring compliance with functional safety standards, its built-in SIL2 certification avoids costly third-party validation.

System Integration and Expandability

The 125720-01 integrates natively within the Bently Nevada 3500 architecture using Rack Configuration Software (RCS) and System 1 asset management platform. RCS enables drag-and-drop configuration of module parameters, including input filtering, alarm thresholds, and redundancy settings, while System 1 provides long-term trend analysis, automated reporting, and integration with enterprise reliability programs.

In terms of communication, the module itself operates over the 3500’s deterministic backplane, but the entire rack can interface with higher-level systems via optional communication gateways such as the 3500/92 Ethernet Gateway or 3500/94 Serial Gateway. These support protocols like Modbus TCP, OPC DA, and OPC UA, enabling secure data flow to SCADA, DCS, or cloud-based analytics platforms without compromising the integrity of the safety layer.

The module is highly scalable: a single 3500 rack can accommodate up to 14 I/O modules, supporting dozens of Keyphasor and vibration channels in a single chassis. It works seamlessly alongside other 3500 modules—including displacement, acceleration, and temperature monitors—to create a unified machinery protection strategy. For large installations, multiple racks can be synchronized via the 3500/93 Redundant Gateway, ensuring consistent timing across distributed assets. This modularity, combined with Emerson’s long-term product commitment, makes the 125720-01 a future-proof choice for critical rotating equipment protection.
