BENTLY 125840-01 | 3500/25 Enhanced Keyphasor Module | Obsolete Machinery Protection Spare Analysis

  • Model: 125840-01
  • Brand: Bently Nevada (a Baker Hughes business)
  • Core Function: Enhanced Keyphasor module for the 3500 machinery protection system, providing high-fidelity speed and phase reference signals essential for vibration analysis, shaft orbit plots, and trip logic in critical rotating equipment
  • Lifecycle Status: Discontinued (Obsolete)
  • Procurement Risk: High – no new production; limited verified units available through specialized vendors with long lead times and premium pricing
  • Key Role: Serves as the primary source of rotational timing data for all 3500 monitoring modules; failure compromises diagnostic accuracy and may disable critical protection functions such as overspeed or differential expansion trips
Category:

Description

Technical Specifications (For Spare Part Verification)

  • Product Model: 125840-01
  • Manufacturer: Bently Nevada
  • System Family: 3500 Machinery Protection System
  • Input Channels: 2 independent Keyphasor inputs (typically from proximity probes or magnetic pickups)
  • Input Signal Type: AC-coupled sine or pulse waveform (–0.5 to +24 VDC range)
  • Output: Buffered Keyphasor signal distributed via 3500 backplane to all compatible modules
  • Resolution: Capable of detecting single tooth on gear with >10,000 RPM
  • Diagnostic Features: Wire-off, short-circuit, and signal validity detection per channel
  • Redundancy Support: Can be configured in redundant pairs for critical applications
  • Backplane Compatibility: Requires 3500/05 or later rack interface
  • LED Indicators: Power, OK, Fault, and per-channel signal present
  • Safety Certification: Suitable for use in SIL 2 applications when deployed in compliant architecture

System Role and Downtime Impact

The BENTLY 125840-01 is a foundational timing reference module in legacy 3500 systems protecting gas turbines, steam turbines, compressors, and generators in power, oil & gas, and petrochemical facilities. It converts raw tachometer signals into clean, synchronized Keyphasor pulses that enable precise measurement of vibration amplitude, phase angle, and rotational speed—data critical for both condition monitoring and automatic shutdown logic. If this module fails or provides erratic output, downstream modules (e.g., 3500/42M, 3500/53) may report false alarms, lose phase correlation, or inhibit trip outputs due to invalid reference. In severe cases, loss of Keyphasor can cause the entire protection system to enter a “safe state,” potentially triggering an unplanned turbine trip. Given its central role, absence of a verified spare significantly increases operational risk during unscheduled failures.



Reliability Analysis and Common Failure Modes

Although designed for industrial environments, the 125840-01 is susceptible to age-related degradation after 15–20 years of continuous operation. The most frequent failure mode involves the input signal conditioning circuitry—particularly the comparator ICs and coupling capacitors—which can drift due to thermal cycling, leading to missed pulses or false triggering at low speeds. Internal power regulation components may also degrade, causing intermittent resets or output instability. Additionally, the module’s sensitivity to electromagnetic interference (EMI) increases as shielding effectiveness diminishes over time, especially in plants with variable frequency drives nearby.

Key vulnerabilities include:

  • No internal surge suppression on field inputs—susceptible to transients from lightning or switching events
  • Dependence on stable probe gap and clean target gear; poor field installation accelerates module stress
  • Firmware version lock—older revisions may not interoperate with newer 3500 modules

Preventive maintenance recommendations:

  • Perform annual signal integrity checks using oscilloscope to verify pulse shape and amplitude
  • Validate module output by comparing speed readings across multiple 3500 modules
  • Ensure proper grounding of probe cables and shield continuity to reduce noise
  • Store spares in ESD-safe, dry, temperature-controlled packaging

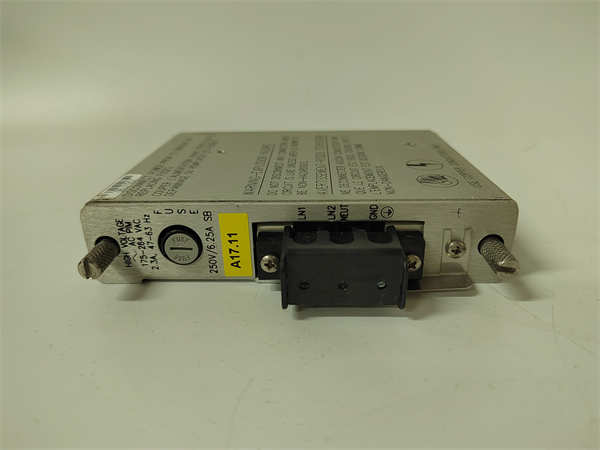

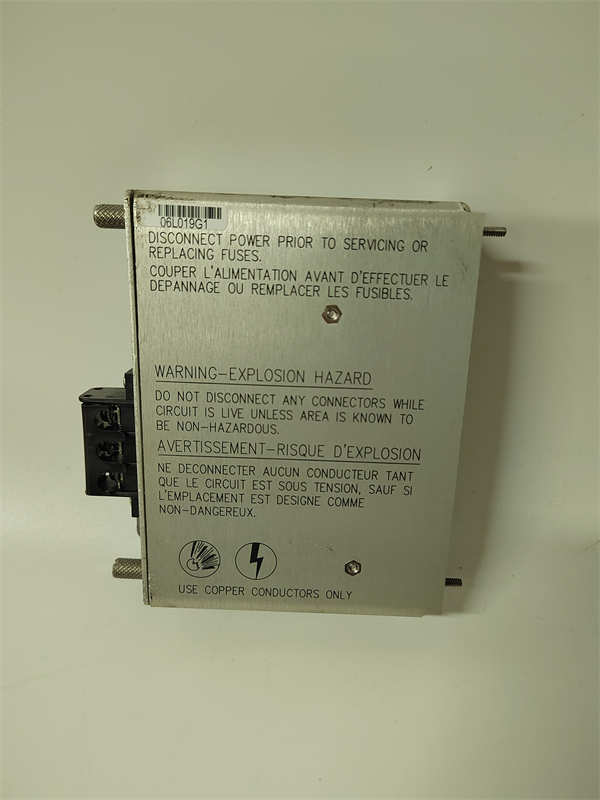

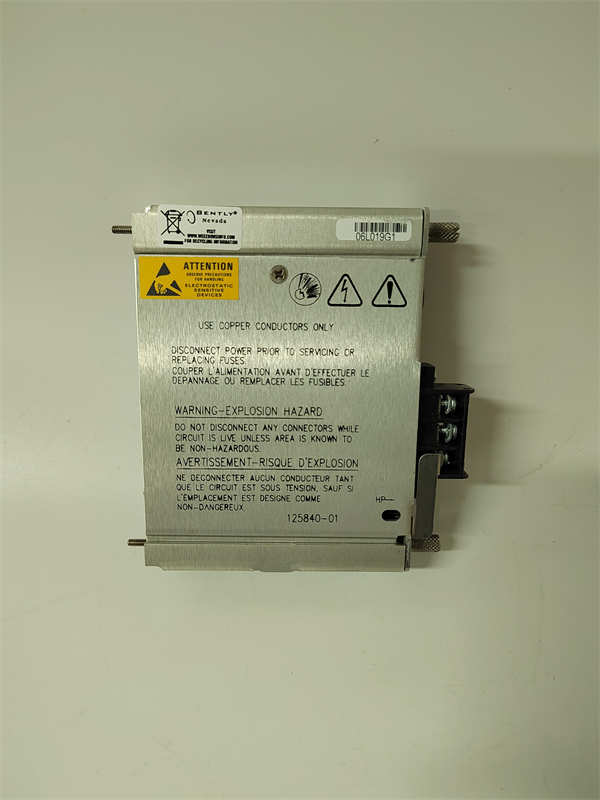

BENTLY 125840-01

BENTLY 125840-01

Lifecycle Status and Migration Strategy

Bently Nevada has discontinued the 125840-01 as part of the phased retirement of legacy 3500 modules, with official support now focused on the 3500/25R (redundant) and next-generation System 1 platforms. No new units are manufactured, and existing inventory consists of refurbished or surplus stock with uncertain calibration history.

As an interim measure, facilities may:

  • Acquire and functionally test one or more spares under full-speed simulation conditions
  • Implement external signal conditioners to reduce electrical stress on inputs
  • Enforce strict cable routing practices to minimize EMI exposure

For long-term sustainability, Baker Hughes recommends migration to the 3500/25R Enhanced Keyphasor Module (part number 146790-01), which offers:

  • Improved noise immunity and wider input voltage tolerance
  • Enhanced diagnostics and compatibility with modern 3500 firmware
  • Continued lifecycle support through 2030+

Migration typically requires:

  • Replacing the module in the existing 3500 rack (backward-compatible form factor)
  • Updating configuration in Rack Configuration Software (RCS)
  • Revalidating all dependent protection functions (e.g., overspeed, phase-related trips)

In parallel, strategic sites are transitioning to the Bently Nevada System 1 platform, which integrates machinery protection with advanced analytics and cloud connectivity. While more comprehensive, this path requires full system redesign. For most operators, securing verified spares and planning a staged module-level upgrade remains the most pragmatic approach to managing obsolescence while maintaining asset protection integrity.
