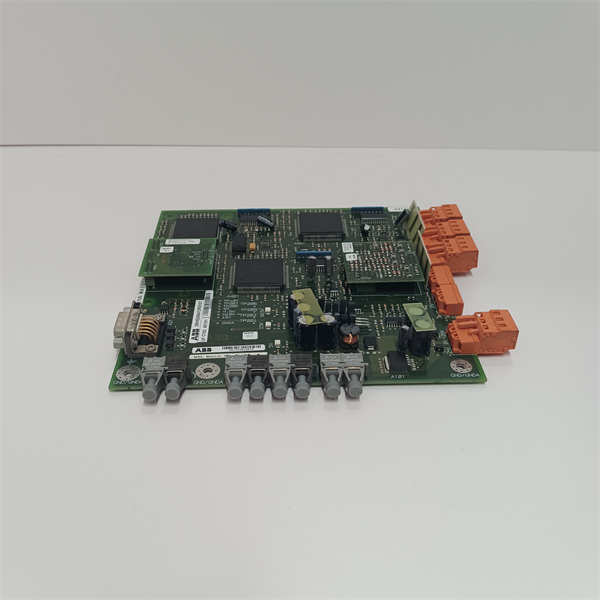

ABB UFC762AE101 3BHE006412R0101 | AC 800F Controller Module | Obsolete Process Automation Spare Parts Risk

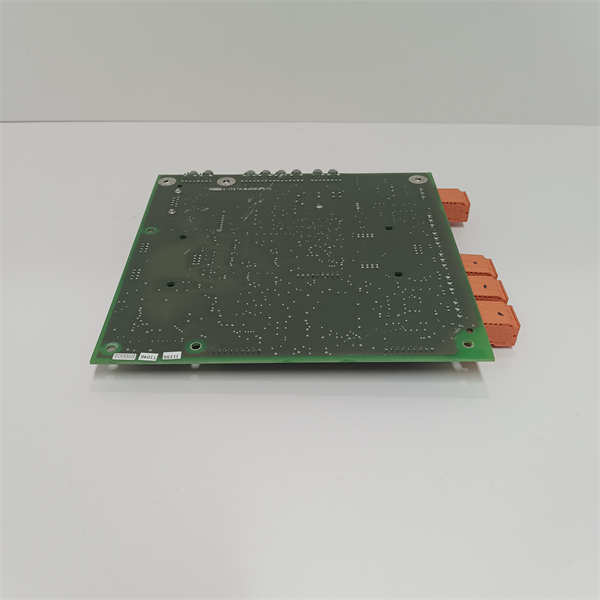

ABB UFC762AE101 3BHE006412R0101 | AC 800F Controller Module | Obsolete Process Automation Spare Parts Risk - Image 2

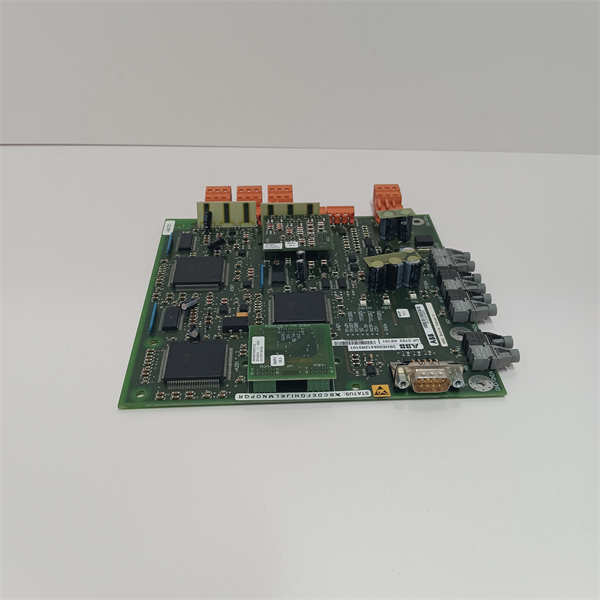

ABB UFC762AE101 3BHE006412R0101 | AC 800F Controller Module | Obsolete Process Automation Spare Parts Risk - Image 3
ABB UFC762AE101 3BHE006412R0101 | AC 800F Controller Module | Obsolete Process Automation Spare Parts Risk - Image 4

ABB UFC762AE101 3BHE006412R0101 | AC 800F Controller Module | Obsolete Process Automation Spare Parts Risk

  • Model: UFC762AE101
  • ABB Part Number: 3BHE006412R0101
  • Brand: ABB
  • Core Function: Basic central processing unit (CPU) module for the AC 800F controller within the MasterPiece 200/300 distributed control system (DCS)
  • Lifecycle Status: Obsolete (End-of-Life) – discontinued as part of ABB’s transition to System 800xA and AC 800M platforms
  • Procurement Risk: Very High – no new production; extremely limited refurbished availability; no official repair, firmware support, or documentation from ABB
  • Critical Role: Executes real-time control logic for process loops (e.g., boiler feedwater, combustion, turbine bypass); failure results in complete loss of automated control in its assigned segment
Category:

Description

Key Technical Specifications (For Spare Part Verification)

  • Product Model: UFC762AE101
  • ABB Order Code: 3BHE006412R0101
  • System Family: ABB MasterPiece 200/300 → AC 800F Controller
  • Controller Type: Basic (non-redundant) CPU for AC 800F rack
  • Processor: Motorola 68040-class embedded CPU (～33–50 MHz)
  • Memory: Integrated program and working memory (typically 4–8 MB DRAM, battery-backed SRAM for configuration retention)
  • Communication Interfaces:
    • Dual Profibus DP ports (for I/O modules and operator stations)
    • RS-232/RS-485 service port (for PG2000 programming tool)
    • Optional Ethernet via communication modules (e.g., UFC781)
  • I/O Capacity: Supports up to 1,024 I/O points via S100/S500 I/O modules over Profibus
  • Redundancy: Not supported on UFC762AE101 (redundant versions use UFC763/UFC764)
  • Mounting: Plug-in module in AC 800F backplane chassis
  • Power: Supplied via backplane (+5 V, ±12 V DC)
  • Programming: Exclusively via ABB PG2000 engineering tool (DOS/Windows 3.1/95 era)
  • Operating System: Proprietary real-time OS (RTA2)

System Role and Downtime Impact

The UFC762AE101 is commonly found in legacy power plants, district heating systems, and industrial boilers installed in the 1990s–early 2000s. It controls critical analog and sequential logic—such as drum level regulation, fuel-air ratio, or emergency shutdown sequences.
Because it is non-redundant, a hardware failure causes an immediate halt to all automated functions in its domain. Recovery requires:
  1. Physical replacement of the module
  2. Re-downloading of the application using PG2000 software
  3. Valid license key and compatible PC (often requiring legacy Windows OS and serial/Profibus interface cards)
If the original project files, license dongle, or engineering station are unavailable, restoration can take days or weeks, potentially forcing manual operation or plant derating—posing safety and compliance risks.

Reliability Analysis and Common Failure Modes

After 20+ years in service, the UFC762AE101 is highly vulnerable to component aging:
  • Battery depletion in SRAM backup circuit → loss of configuration on power cycle
  • Capacitor plague on power regulation circuits → voltage instability and crashes
  • EPROM/Flash corruption → boot failure or erratic logic execution
  • Backplane connector oxidation → intermittent communication with I/O or power modules
  • Crystal oscillator drift → timing errors in control loops
Environmental stressors like high temperature, humidity, and electrical noise accelerate these issues. Recommended preventive actions include:
  • Annual verification of backup battery voltage (>2.8 V)
  • Imaging the module’s memory content (if PG2000 access exists)
  • Storing a fully configured spare in climate-controlled conditions
  • Documenting jumper settings and DIP switch positions
ABB UFC762AE101 3BHE006412R0101

ABB UFC762AE101 3BHE006412R0101

Lifecycle Status and Migration Strategy

ABB officially discontinued the MasterPiece/AC 800F platform in the early 2000s, replacing it with the System 800xA architecture based on AC 800M controllers. The UFC762AE101 (3BHE006412R0101) has been obsolete for over a decade, with no path for official support.
Short-term mitigation:
  • Secure at least one tested, pre-programmed spare
  • Archive PG2000 project files, license keys, and installation media
  • Train personnel on manual control procedures
Long-term migration path:
  1. Full DCS modernization to ABB Ability™ System 800xA with AC 800M or AC 900F controllers
    • Enables IEC 61131-3 programming, OPC UA, cybersecurity, and cloud integration
    • Requires re-engineering of control logic but offers 15+ year lifecycle support
  2. Hybrid approach: Use protocol gateways (e.g., ProSoft, HMS) to extract data for monitoring while planning full replacement
  3. Third-party emulation: In rare cases, specialized firms offer FPGA-based emulation—but with high cost and validation burden
Migration is not just a hardware refresh—it eliminates single points of failure, improves operational visibility, and ensures compliance with modern safety and cybersecurity standards (e.g., IEC 62443, NERC CIP). For facilities still running UFC762AE101 modules, a formal obsolescence risk assessment and migration roadmap are strongly advised.
