ABB UFC760BE43 3BHE004573R0043 | AC 800F Controller Module | Obsolete Spare Parts Risk Analysis

Description

Key Technical Specifications (For Spare Part Verification)

• Product Model: UFC760BE43
• Manufacturer: ABB
• System Family: Freelance AC 800F DCS
• Order Code: 3BHE004573R0043
• Processor Type: Embedded real-time CPU module for redundant or standalone operation
• Memory: Integrated RAM and flash for program and configuration storage
• Redundancy Support: Hot-standby capability when paired with identical module
• Fieldbus Interfaces: Dual PROFIBUS DP ports (integrated)
• Mechanical Form Factor: Rack-mounted module for AC 800F station
• Status Indicators: LEDs for RUN, STOP, RED (redundancy), and bus communication

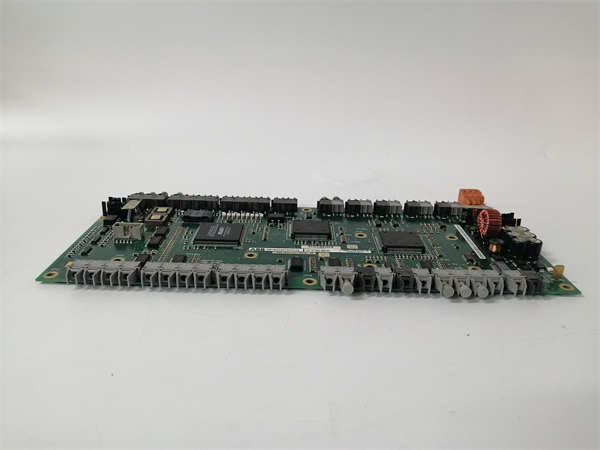

UFC760BE43 3BHE004573R0043 ABB

System Role and Downtime Impact

The UFC760BE43 serves as the central processing unit in ABB’s Freelance AC 800F distributed control system, commonly deployed in water treatment plants, small-scale chemical processes, and batch manufacturing. It executes all control logic, handles communication with remote I/O stations via PROFIBUS DP, and interfaces with operator stations running Freelance Engineering software. In redundant configurations, it operates in a hot-standby pair to ensure continuous process availability. Failure of this module—particularly in a non-redundant setup—results in immediate loss of automated control across the entire station, potentially triggering safety shutdowns or uncontrolled process deviations. Even in redundant systems, loss of one unit increases vulnerability, as a second failure would cause total station outage. Given the age of most AC 800F installations, unplanned failure often leads to extended downtime due to lack of readily available spares.

Reliability Analysis and Common Failure Modes

Although designed for industrial reliability, the UFC760BE43 exhibits typical failure patterns associated with early-2000s embedded control hardware. The most common issues stem from aging power regulation circuits, where degraded capacitors cause voltage instability and spontaneous reboots. Another frequent point of failure is the PROFIBUS communication transceivers, which can be damaged by ground loops or electrical surges on field cabling—especially in plants without updated isolation practices. The module also relies on internal battery-backed RAM (in some firmware versions) for configuration retention during power loss; these batteries are no longer serviceable and may lead to program corruption after prolonged outages. Thermal stress from inadequate cabinet ventilation accelerates solder joint fatigue, particularly around high-power components. Recommended preventive actions include regular inspection of diagnostic LEDs for communication errors, monitoring ambient temperature in the control cabinet, verifying backup power integrity, and maintaining up-to-date offline configuration backups to expedite recovery if replacement becomes necessary.

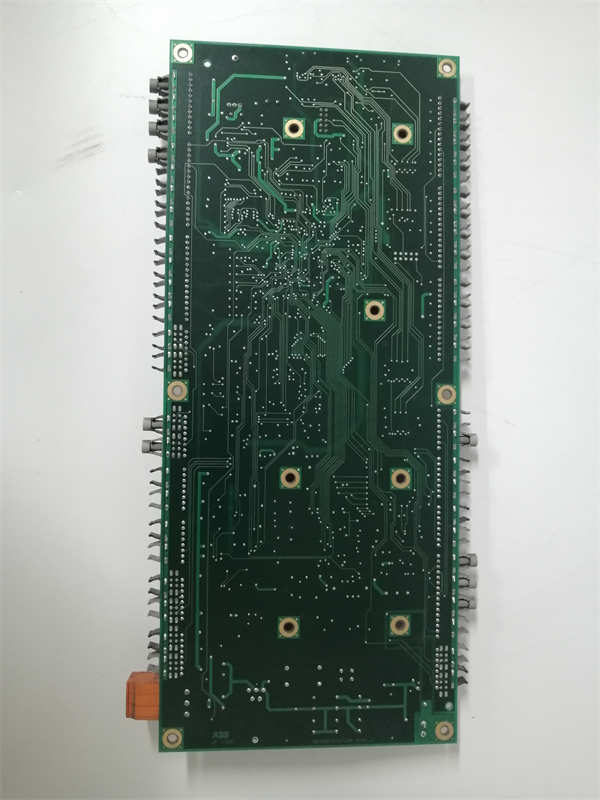

UFC760BE43 3BHE004573R0043 ABB

Lifecycle Status and Migration Strategy

ABB has formally discontinued the AC 800F platform, including the UFC760BE43 (3BHE004573R0043), with no direct active replacement. Continued operation entails significant risk: genuine spare modules are extremely scarce, third-party units offer no performance guarantees, and official engineering support is restricted to legacy service agreements. As an interim measure, users may acquire tested-used modules from certified surplus suppliers or implement preventive stockpiling—but long-term reliability remains uncertain. The recommended strategic path is migration to ABB’s current System 800xA or compact AC 800M platforms. For smaller applications, transition to AC 800M with redundant CPUs (e.g., PM86x series) and modern I/O offers a scalable alternative. This upgrade requires re-engineering of control logic in Control Builder M, rewiring of field connections, and reconfiguration of HMI graphics. While requiring investment, this approach restores access to cybersecurity updates, vendor support, and integration with modern IT/OT infrastructure such as cloud-based analytics and mobile monitoring—ensuring operational resilience beyond the limits of obsolete hardware.
