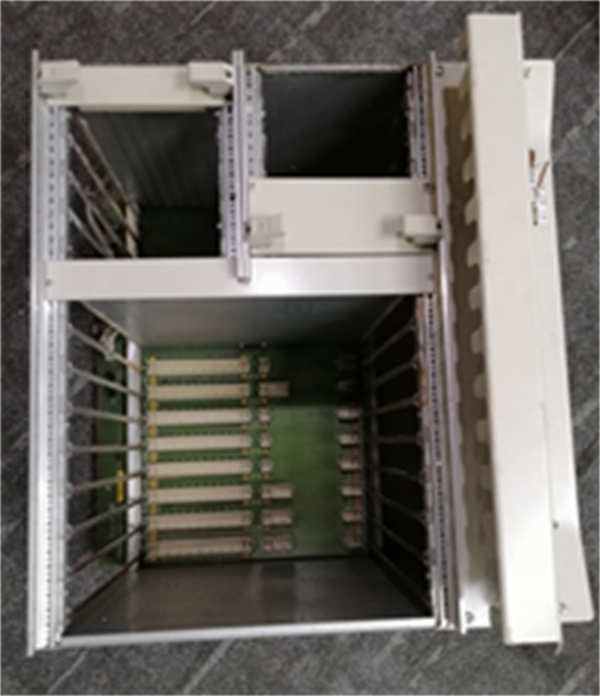

ABB RF533 3BSE014227R1 | AC 800F Remote I/O Module | Obsolete Spare Parts Risk Assessment

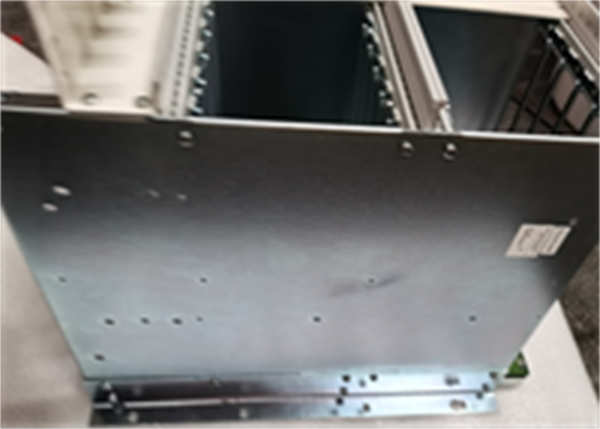

ABB RF533 3BSE014227R1 | AC 800F Remote I/O Module | Obsolete Spare Parts Risk Assessment - Image 2

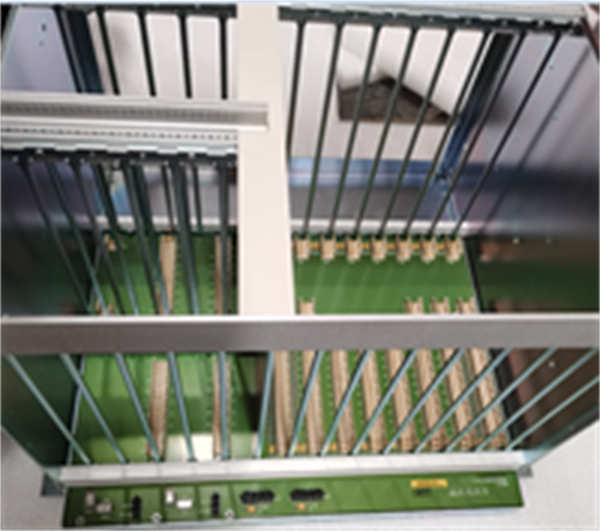

ABB RF533 3BSE014227R1 | AC 800F Remote I/O Module | Obsolete Spare Parts Risk Assessment - Image 3
ABB RF533 3BSE014227R1 | AC 800F Remote I/O Module | Obsolete Spare Parts Risk Assessment - Image 4

ABB RF533 3BSE014227R1 | AC 800F Remote I/O Module | Obsolete Spare Parts Risk Assessment

  • Model: RF533 3BSE014227R1
  • Brand: ABB
  • Core Function: PROFIBUS DP slave interface module for ABB AC 800F distributed control system (DCS)
  • Lifecycle Status: Officially discontinued (Obsolete)
  • Procurement Risk: High – limited to secondary market; pricing volatile and supply unreliable
  • Critical Role: Acts as the fieldbus communication gateway between AC 800F controller and remote I/O stations; failure disrupts all connected field devices
Category: SKU: RF533 3BSE014227R1 ABB

Description

Key Technical Specifications (For Spare Parts Verification)

  • Product Model: RF533 3BSE014227R1
  • Manufacturer: ABB
  • System Platform: ABB Advant Controller 800F (AC 800F) DCS
  • Communication Protocol: PROFIBUS DP (Slave)
  • Supported Data Rate: Up to 12 Mbps
  • Power Supply: 24 V DC (typically supplied via backplane)
  • Module Dimensions: Standard DIN rail mount, 40 mm width
  • Connection Type: 9-pin D-SUB male connector for PROFIBUS cable
  • Diagnostic Indicators: LED status for power, bus activity, and fault
  • Compatibility: Requires AC 800F CPU with firmware supporting RF5xx series modules

System Role and Downtime Impact

The RF533 3BSE014227R1 serves as a critical fieldbus coupler in legacy ABB AC 800F systems, enabling communication between the central controller and remote I/O racks located in field junction boxes or motor control centers. It is typically deployed in process industries such as power generation, water treatment, or chemical plants where long-distance signal distribution is required. If this module fails, all I/O channels connected through its remote station become inaccessible to the control logic. This can lead to partial or complete process shutdown—depending on redundancy design—potentially halting production for hours or days until a verified replacement is sourced and installed.



Reliability Analysis and Common Failure Modes

Despite its robust industrial design, the RF533 is susceptible to age-related degradation due to its era of manufacture (early-to-mid 2000s). The most frequent failure modes include:
  • Electrolytic capacitor aging: Internal power filtering capacitors dry out over time, leading to unstable voltage regulation and intermittent communication drops.
  • PROFIBUS transceiver IC failure: The RS-485 driver chip is vulnerable to ground potential differences and electrical surges on long fieldbus cables, especially if shielding or grounding is compromised.
  • Connector corrosion: The D-SUB port may develop oxidation or mechanical wear from repeated handling, causing signal integrity issues.
A key design weakness is the lack of redundant communication paths—most installations use a single RF533 per remote station. Additionally, the module relies on stable 24 V DC from the backplane; any power fluctuation can trigger bus-off states that require manual reset.
For preventive maintenance, technicians should:
  • Inspect the module’s diagnostic LEDs for recurring “BF” (bus fault) indications.
  • Measure ripple on the 24 V supply rail at the I/O rack.
  • Verify PROFIBUS termination resistors and cable shield continuity annually.
  • Keep a tested spare unit in climate-controlled storage to avoid moisture-induced failures.
RF533 3BSE014227R1 ABB

RF533 3BSE014227R1 ABB

Lifecycle Status and Migration Strategy

ABB has formally discontinued the RF533 3BSE014227R1 as part of the broader AC 800F platform end-of-life. No new units are manufactured, and official technical support is limited. Continued use carries significant operational risk: spare parts are scarce, counterfeit units circulate in gray markets, and repair expertise is dwindling.
As a temporary measure, facilities may:
  • Source verified used or refurbished units from specialized industrial surplus suppliers.
  • Perform board-level repairs (e.g., capacitor rework) through certified third-party service labs.
  • Implement external PROFIBUS repeaters to reduce electrical stress on the module.
For a sustainable solution, ABB recommends migrating to the System 800xA with AC 900F controllers or, more commonly, to the Ability™ System 800xA with modern I/O platforms such as the CI86x series (e.g., CI864 for PROFIBUS). This migration typically involves:
  • Replacing the entire I/O subsystem (backplane, power, modules).
  • Updating control application logic in Control Builder M.
  • Re-commissioning field wiring and device GSD files.
While migration requires capital investment, it eliminates single-point-of-failure risks, improves cybersecurity posture, and restores access to full vendor support—making it the only viable long-term path for critical infrastructure still running on AC 800F.
