ABB PMA323BE HIEE300308R1 | Process Control Module | Obsolete Spare Parts Analysis

Key Technical Specifications (For Spare Part Verification)

• Product Model: PMA323BE
• Manufacturer: ABB
• System Family: AC 800M Process Automation Platform
• Order Code: HIEE300308R1
• Module Type: Redundant analog I/O processor
• Supported Signal Types: 4–20 mA, 0–20 mA, ±10 V (configuration-dependent)
• Channel Architecture: Interfaces with submodules; handles signal routing and redundancy logic
• Redundancy Support: Hardware-level redundancy compliant with SIL2 requirements
• Mechanical Mounting: DIN rail compatible with PM-series backplanes
• Communication Bus: ModuleBus (internal) with optional Profibus DP gateway support

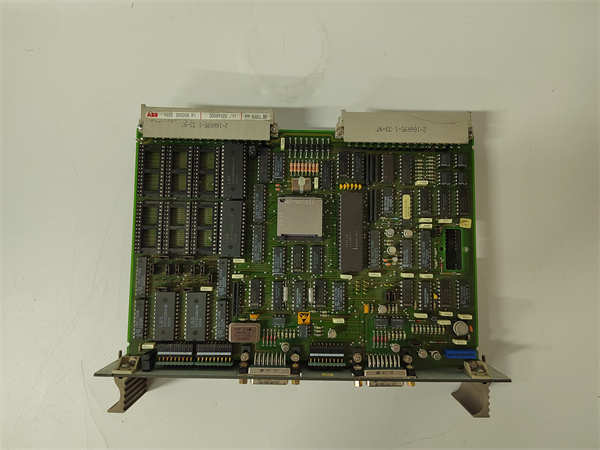

ABB PMA323BE HIEE300308R1

System Role and Downtime Impact

The PMA323BE functions as a core I/O processing unit within ABB’s AC 800M redundant control architecture. It is typically deployed in high-availability applications where uninterrupted analog signal acquisition and output are essential—such as boiler feedwater control in thermal power plants or temperature regulation in batch reactors. Operating in a paired redundant configuration, it ensures failover capability if the primary unit fails. Loss of this module without an available spare compromises system redundancy, potentially triggering safety interlocks or forcing a controlled process shutdown. In non-redundant legacy installations (less common but possible), its failure would directly interrupt critical analog I/O, resulting in immediate operational disruption.

Reliability Analysis and Common Failure Modes

Although engineered for industrial environments, the PMA323BE exhibits typical aging issues associated with early-generation digital I/O modules. The most prevalent failure mechanisms include electrolytic capacitor degradation on the power supply section, leading to voltage instability or intermittent operation; oxidation or fretting corrosion on backplane connectors due to thermal cycling and humidity exposure; and loss of configuration data caused by failed backup power components. A notable design limitation is its dependence on internal supercapacitors or optional battery packs for RAM retention during outages—these components have finite lifespans and are no longer replaceable with original parts. Additionally, the module’s input protection circuits can be damaged by voltage surges on field wiring, especially in facilities lacking modern transient suppression. Recommended preventive actions include periodic inspection of connector integrity, verification of backup power health, monitoring of diagnostic indicators for communication faults, and maintaining clean, climate-controlled cabinet conditions to extend remaining service life.

ABB PMA323BE HIEE300308R1

Lifecycle Status and Migration Strategy

ABB has formally declared the PMA323BE (HIEE300308R1) obsolete, with no direct active replacement available. Continued operation entails substantial risk: genuine spares are unavailable, third-party alternatives offer uncertain reliability, and official technical support is limited to existing maintenance agreements. As an interim measure, users may procure tested-used units from certified surplus suppliers or utilize specialized repair services capable of board-level component replacement—though long-term performance cannot be guaranteed. The recommended long-term solution is migration to the current AC 800M High Availability (HA) platform, utilizing modern redundant I/O modules such as the AI810 analog input module with TB820 terminal base or equivalent AO modules. This upgrade requires re-engineering of field wiring, reconfiguration in Control Builder M engineering software, and potential recalibration of field instruments. While requiring capital investment, this path restores access to vendor support, improves cybersecurity posture, and aligns the control system with contemporary standards for availability and maintainability.
