  • Model: GFD233A (Order Code: 3BHE022294R0103)
  • Brand: ABB
  • Core Function: Gate firing driver board used in ABB’s EX2100 or UNITROL® excitation systems to amplify control signals and trigger thyristors in the power converter
  • Lifecycle Status: Discontinued (Obsolete)
  • Procurement Risk: Very High – no new production from ABB; extremely limited availability on secondary market, often with unverified operational history
  • Critical Role: Directly controls thyristor gate pulses that regulate generator field current; failure can cause loss of voltage regulation, forced unit trip, or damage to power electronics
Category:

Description

Key Technical Specifications (For Spare Part Verification)

  • Product Model: GFD233A
  • ABB Order Code: 3BHE022294R0103
  • Manufacturer: ABB
  • System Family: EX2100 or UNITROL® 6000/6800 excitation systems
  • Function: Analog gate pulse amplifier and isolation interface for thyristor bridges
  • Input Signal: Low-voltage timing pulses from regulator (e.g., GVC or SPA boards)
  • Output: Isolated, high-current gate drive signals for up to 6 thyristors (per bridge)
  • Isolation: Galvanic isolation between control and power circuits (>4 kV typical)
  • Power Supply: Dual ±15 V DC (from system backplane or local supply)
  • Mounting: Plug-in card in excitation controller chassis
  • Diagnostics: No onboard LEDs; fault detection relies on system-level alarms (e.g., “Pulse Fault” or “Field Current Deviation”)

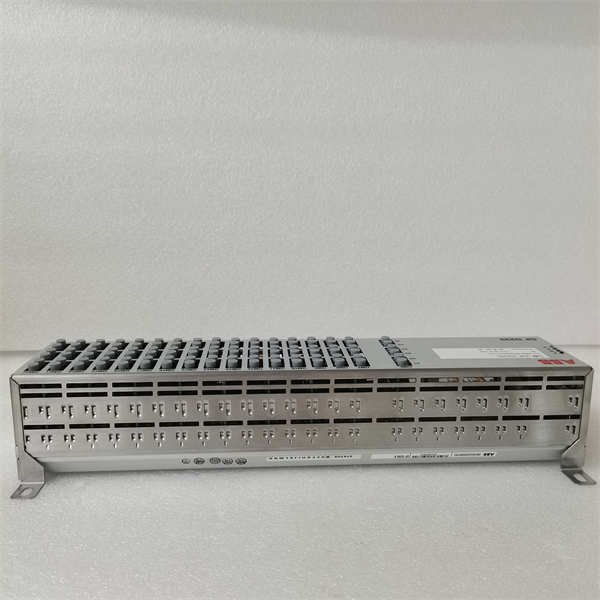

ABB GFD233A 3BHE022294R0103

ABB GFD233A 3BHE022294R0103

System Role and Downtime Impact

The GFD233A is a critical analog interface within ABB’s legacy static excitation systems, commonly installed on large synchronous generators in thermal, hydro, and combined-cycle power plants. It translates low-power timing commands from the voltage regulator into robust gate pulses capable of triggering high-power thyristors in the exciter power bridge. Accurate pulse timing and amplitude are essential for stable field current control, reactive power sharing, and grid compliance. A malfunctioning GFD233A can cause erratic firing, partial bridge dropout, or complete loss of excitation—triggering generator protective relays (e.g., loss-of-field or under-excitation trips). Because most excitation systems operate without redundant GFD boards, a single failure typically forces an immediate turbine-generator shutdown, resulting in significant revenue loss and potential grid instability in small networks.

Reliability Analysis and Common Failure Modes

Despite industrial-grade design, the GFD233A is prone to several age- and stress-related failure mechanisms:

  • Output transistor or driver IC degradation: Repeated high-current switching causes thermal fatigue in output stages, leading to weak or missing gate pulses.
  • Isolation barrier breakdown: Voltage transients or moisture ingress compromise internal transformers or optocouplers, risking control-to-power short circuits.
  • Capacitor aging: Electrolytic capacitors in local filtering dry out, causing noise on gate signals or unstable bias voltages.
  • Connector or solder joint fatigue: Thermal cycling from nearby power components induces micro-cracks, resulting in intermittent operation.
  • Component drift in analog circuitry: Resistors and op-amps shift over time, altering pulse width or timing skew between phases.

A key vulnerability is the lack of self-diagnostics—the board fails silently, with symptoms only appearing at the system level. Preventive maintenance should include:

  • Periodic oscilloscope verification of gate pulse amplitude, width, and timing during offline testing
  • Infrared thermography during operation to detect abnormal heating
  • Visual inspection for burnt traces, bulging capacitors, or discoloration near output drivers
  • Storage of verified spares in ESD-safe, temperature-controlled environments
ABB GFD233A 3BHE022294R0103

ABB GFD233A 3BHE022294R0103

Lifecycle Status and Migration Strategy

ABB has discontinued the GFD233A as part of the broader phase-out of analog-based excitation hardware. The component is no longer manufactured, and official technical support is restricted to legacy documentation. No repair services or recalibration are offered by ABB. Continued use poses substantial risk: unavailability of authentic spares, increasing likelihood of catastrophic failure, and difficulty in troubleshooting due to declining expertise.

Short-term mitigation includes:

  • Sourcing tested units from specialized power generation surplus vendors (with functional validation)
  • Engaging third-party firms capable of component-level repair and pulse waveform calibration

The strategic long-term solution is a full excitation system modernization. ABB recommends upgrading to the UNITROL 6800 or UNITROL 8000 digital excitation platforms, which replace discrete boards like the GFD233A with integrated, software-configurable gate drive electronics featuring real-time diagnostics, predictive health monitoring, and compliance with modern grid codes (e.g., IEEE PSS2B, ENTSO-E).

Migration involves:

  • Replacing the entire excitation controller chassis
  • Rewiring gate cables to new interface modules
  • Recommissioning AVR logic, limiters, and protection functions
  • Performing full generator step-response and stability tests
