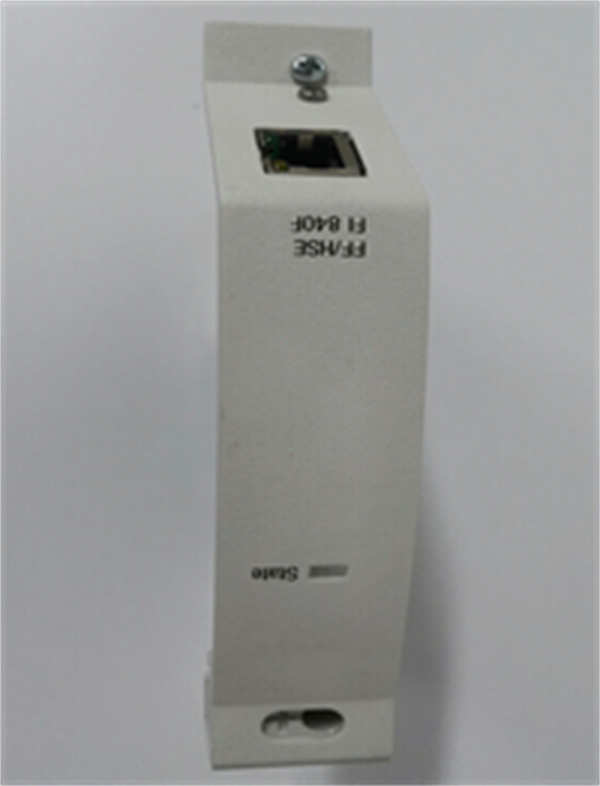

ABB FI840F | S800 Analog Output Module | Obsolete I/O Spare Parts & Risk Analysis

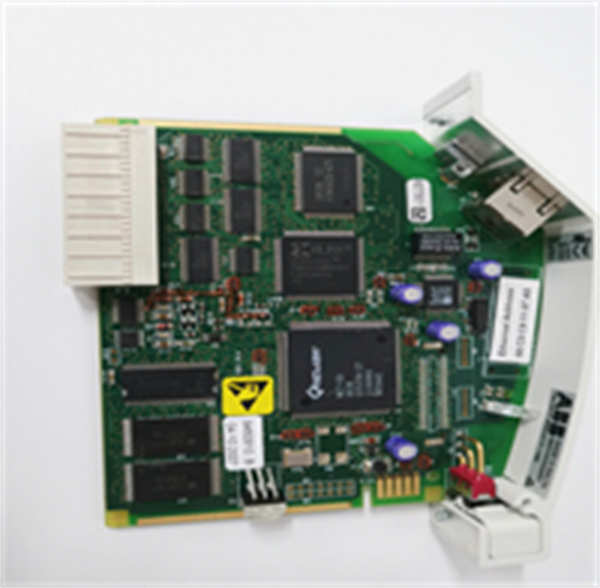

ABB FI840F | S800 Analog Output Module | Obsolete I/O Spare Parts & Risk Analysis - Image 2
ABB FI840F | S800 Analog Output Module | Obsolete I/O Spare Parts & Risk Analysis - Image 3

ABB FI840F | S800 Analog Output Module | Obsolete I/O Spare Parts & Risk Analysis

¥840.00

  • Model: FI840F
  • Brand: ABB
  • Core Function: 4-channel redundant analog output module for S800 I/O system, providing 4–20 mA signals with HART communication support for valve positioners and actuators
  • Lifecycle Status: Obsolete – no longer manufactured by ABB; superseded by newer S800 modules
  • Procurement Risk: High – limited to secondary market inventory; functional validation required due to age-related component drift
  • Critical Role: Drives final control elements (e.g., control valves, VFDs) in safety-critical or continuous processes; failure can cause loss of regulatory control or force manual operation
Category: SKU: ABB FI840F

Description

Key Technical Specifications (For Spare Parts Verification)

  • Product Model: FI840F
  • Manufacturer: ABB
  • System Family: S800 I/O for AC 800M Distributed Control System
  • Output Channels: 4 isolated analog outputs
  • Signal Type: 4–20 mA (sink/source capable), with HART digital communication overlay
  • Redundancy: Supports 1:1 redundant configuration when paired with a second FI840F on a compatible baseplate (e.g., DSRF182)
  • Load Capability: Up to 750 Ω per channel at 24 VDC
  • Accuracy: ±0.1% of span (typical at 25°C)
  • Update Rate: ≤ 10 ms per channel
  • Diagnostics: Per-channel open-circuit detection, HART communication status, module OK LED
  • Mounting: Requires S800 I/O baseplate in AC 800M chassis (e.g., TB820V2 series)

System Role and Downtime Impact

The ABB FI840F is a key actuation interface in mid-generation AC 800M systems deployed across power generation, refining, and chemical processing facilities. It translates controller setpoints into precise 4–20 mA signals to drive control valves, dampers, or variable frequency drives—often in loops requiring high reliability, such as boiler feedwater control or reactor temperature regulation. When configured redundantly, it ensures uninterrupted output even if one module fails.
If the FI840F malfunctions, one or more control loops lose their ability to modulate final elements. In non-redundant configurations, this can trigger automatic trips or force operators into manual mode, risking product quality, safety, or environmental compliance. Even in redundant setups, a failed primary module increases stress on the backup unit and eliminates fault tolerance until repaired. Recovery requires module replacement and, in some cases, re-tuning of affected loops due to minor calibration differences between units.

Reliability Analysis and Common Failure Modes

Despite robust industrial design, the FI840F is susceptible to long-term degradation due to its analog output circuitry and reliance on precision components. The most common failure modes include:
  • Output drift: Aging of the internal DAC (digital-to-analog converter) or reference voltage sources causes offset or gain errors, leading to incorrect valve positioning—even if the module reports “OK.”
  • HART communication failure: Degradation of the HART modem IC or coupling capacitors disrupts digital communication with smart field devices, disabling remote diagnostics or calibration.
  • Open-circuit false alarms: Faulty diagnostic circuitry may incorrectly report a broken wire, causing unnecessary process interruptions.
  • Power supply instability: Internal DC/DC converter capacitors dry out over time, causing intermittent resets or output glitches under load.
A key design limitation is the lack of field recalibration: unlike newer modules, the FI840F cannot be trimmed via software. Any drift beyond ±0.1% requires module replacement.
Preventive maintenance should include:
  • Periodic loop calibration using a certified mA source/simulator.
  • Monitoring HART signal integrity during device interrogations.
  • Verifying redundancy switchover functionality during scheduled tests.
  • Inspecting terminal blocks for corrosion or loose connections.
ABB FI840F

ABB FI840F

Lifecycle Status and Migration Strategy

ABB has officially discontinued the FI840F and replaced it with enhanced modules such as the FI840F-T (with improved diagnostics) and ultimately the AO840 series in current S800 offerings. No new FI840F units are available, and technical support is limited to archived documentation.
Continued use carries significant risk: authentic spares are scarce, pricing is volatile, and engineering expertise is declining. Used modules may exhibit undetected drift that compromises control performance.
Short-term mitigation includes:
  • Sourcing and functionally testing surplus FI840F modules using calibrated loads and HART communicators.
  • Maintaining a pre-configured spare that matches the firmware and hardware revision of the installed base.
Long-term migration path:
  • Replace with the AO840 (Order Code: 3BSE022540R1), ABB’s current 4-channel redundant analog output module with enhanced diagnostics, lower drift, and full compatibility with modern AC 800M systems.
  • This upgrade requires:
    • Compatible baseplate (e.g., DSRF182AK03 or newer).
    • Updated I/O configuration in Control Builder M.
    • Re-validation of control loops due to potential response time differences.
Migration eliminates dependency on obsolete hardware, restores access to vendor support, and improves long-term operational reliability. For critical applications, a phased replacement—starting with non-safety loops—allows risk-managed modernization while maintaining process continuity.
