Technical Specifications (For Integration & Verification)
- Product Model: CI535V30
- ABB Order Code: 3BSE022162R1
- Manufacturer: ABB
- Associated System: ABB AC 800M controller within 800xA DCS using S800 I/O architecture
- Channels: 16 configurable digital channels (software-selectable per channel as input or output)
- Signal Type: 24 VDC (nominal)
- Input Voltage Range: 15–30 VDC (ON), <5 VDC (OFF)
- Output Type: Sourcing (PNP) transistor outputs, max 0.5 A per channel
- Isolation: Galvanic isolation between field side and backplane (500 VAC)
- Diagnostics: Per-channel LED status, open-circuit detection (inputs), short-circuit protection (outputs)
- Update Time: ～10 ms typical
- Backplane Interface: S800 I/O bus via standard terminal base (e.g., TB511V1 or TB521V1)
- Operating Temperature: 0°C to +60°C
- Standards Compliance: IEC 61000-6-2/4 (EMC), IEC 61131-2
System Role and Operational Impact
The CI535V30 serves as a flexible, high-density interface for discrete signals in modern ABB 800xA systems. Common applications include monitoring pump run status (via auxiliary contacts), controlling valve solenoids, reading local switch positions, and enabling emergency stop circuits. Its configurable channels allow engineers to optimize I/O allocation without hardware changes—critical during plant modifications or debottlenecking projects. Because it supports real-time diagnostics and integrates natively with 800xA’s asset management tools, maintenance teams can detect issues like broken wires or failed solenoids before they cause process upsets. In safety-instrumented functions (non-SIL, basic process control), its reliability directly affects plant availability and operational continuity.
Reliability Features and Best Practices
The CI535V30 is engineered for harsh industrial environments, featuring:
- Robust overvoltage and reverse-polarity protection on all channels
- Individual channel LEDs for rapid troubleshooting during commissioning or maintenance
- Configurable filtering (1–20 ms) to suppress contact bounce or electrical noise
- Hot-swap capability when used with compatible terminal bases (minimizing downtime during replacement)
To ensure long-term reliability:
- Use shielded, twisted-pair cabling for all discrete signals, with shield grounded at the controller end only
- Avoid sharing the same cable with high-power AC lines to prevent inductive coupling
- Verify that connected loads (e.g., relay coils) include flyback diodes to suppress inductive kickback
- Regularly review I/O diagnostic logs in 800xA for early signs of signal degradation

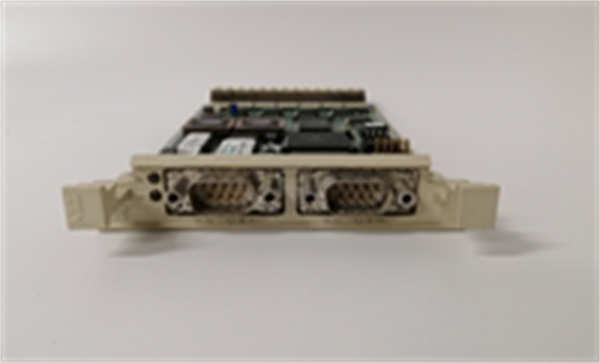

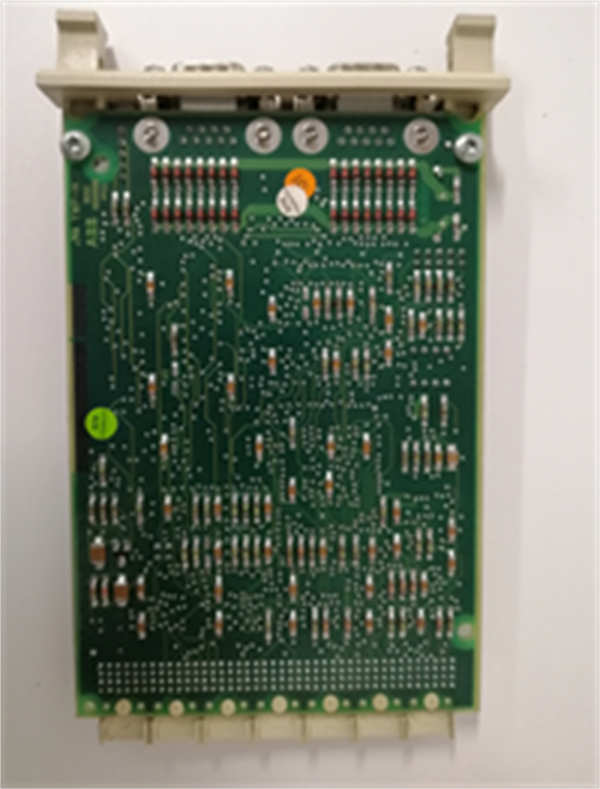

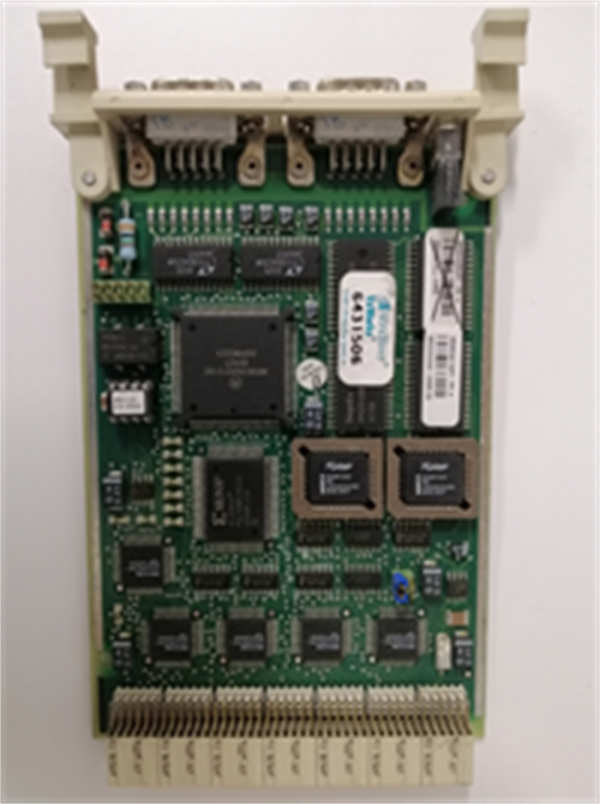

CI535V30 3BSE022162R1 ABB
Procurement Guidance and Migration Notes
As an active product, the CI535V30 (3BSE022162R1) can be procured directly from ABB or authorized partners such as:
- ABB Automation Products
- RS Components
- Rexel
- Graybar
- Local ABB Solution Partners
Note on Compatibility:
- Requires a matching terminal base (e.g., TB511V1 for screw terminals or TB521V1 for spring-clamp)
- Must be configured in Control Builder M (part of 800xA Engineering) before operation
- Firmware updates are delivered automatically via the 800xA system during hardware download
Migration Tip:
If upgrading from legacy modules like the CI522 or CI524, the CI535V30 offers higher density and better diagnostics but requires reconfiguration of I/O tags. However, no major architectural changes are needed—it slots directly into existing S800 I/O stations.
If upgrading from legacy modules like the CI522 or CI524, the CI535V30 offers higher density and better diagnostics but requires reconfiguration of I/O tags. However, no major architectural changes are needed—it slots directly into existing S800 I/O stations.
Given its active status and critical role in discrete control, maintaining a small spare inventory (1–2 units per plant area) is recommended for high-availability facilities, though urgent replacements can typically be sourced within weeks.
