ABB GJR2390200R1411 | AC 800M System Power Module | Legacy DCS Power Unit Maintenance Risk

System Role and Downtime Impact

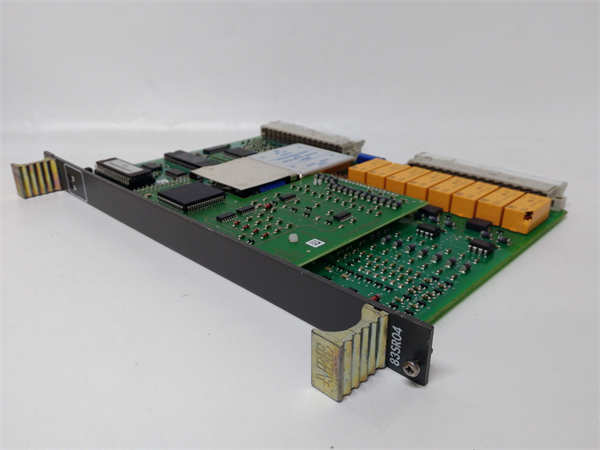

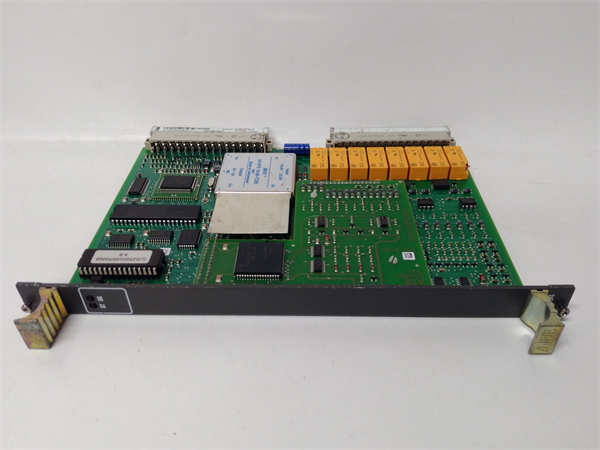

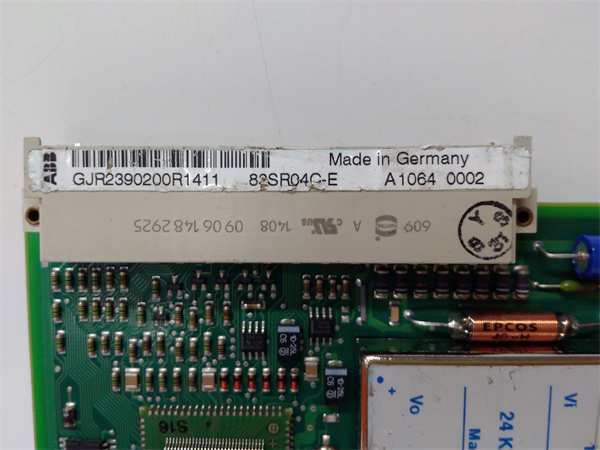

The 83SR04C-E (GJR2390200R1411) power supply, together with its baseplate GJR2390211R45, forms the foundational power infrastructure for ABB AC 800M controllers deployed in critical process industries—such as oil & gas, chemicals, power generation, and mining. It delivers stable, isolated +24 V DC power to all modules in the rack, including CPUs (e.g., PM864A), communication interfaces (CI854A), and I/O packs. In a properly configured redundant setup, one PSU can fail without system impact. However, many legacy installations operate with only one PSU due to cost constraints or space limitations, or have degraded redundancy due to an undetected baseplate fault. A sudden power module failure under these conditions results in immediate loss of the entire AC 800M station—halting all control logic execution, freezing I/O updates, and potentially triggering plant-wide safety shutdowns. Given its passive but essential role, this component is often overlooked until failure occurs, making proactive management critical.

Reliability Analysis and Common Failure Modes

While designed for industrial duty, the 83SR04C-E exhibits predictable aging patterns after 10–15 years of service. The most common failure mode is gradual output voltage droop caused by degradation of bulk electrolytic capacitors in the DC filter stage, leading to intermittent CPU resets or I/O communication errors that are difficult to diagnose. Fan failure (in earlier versions with active cooling) or blocked ventilation in dusty environments accelerates thermal stress on switching components, causing premature MOSFET or transformer failure. The baseplate GJR2390211R45 introduces additional risk: its mechanical latch mechanism can wear out, compromising hot-swap reliability, and its backplane power connectors are prone to fretting corrosion, especially in high-vibration areas, resulting in intermittent power delivery even with a healthy PSU. Notably, the baseplate contains no active electronics but is irreplaceable—without it, the PSU cannot be mounted or share load. Recommended maintenance includes: annual infrared thermography of installed PSUs to detect abnormal heating, visual inspection of fan operation and vent blockage, verification of redundancy status via 800xA diagnostics, and functional testing of spares under full load before storage.

Lifecycle Status and Migration Strategy

ABB has formally discontinued both GJR2390200R1411 and GJR2390211R45, with no direct drop-in replacements available in the current AC 800M portfolio. Newer AC 800M systems use updated power supplies such as GJR2390200R1511 (83SR05C-E), which are not mechanically or electrically compatible with the older baseplate. This creates a dual-component obsolescence challenge: even if a PSU is sourced, the baseplate may be missing or faulty. Continuing to operate with these obsolete parts carries high risk—secondary market units may lack proper burn-in testing, and counterfeit labeling is increasingly reported. As a short-term mitigation, facilities should inventory both PSU and baseplate pairs, test them as integrated units, and avoid mixing batches. Board-level repair is possible but requires specialized knowledge of switch-mode power topologies and access to obsolete capacitors. For long-term sustainability, ABB recommends migrating to the latest AC 800M hardware generation (using PM866A CPUs and GJR2390200R1511 PSUs), which requires replacing the entire rack assembly, reconfiguring I/O wiring, and validating control logic in Control Builder M. Alternatively, some users implement external redundant DIN-rail power supplies feeding a custom adapter—but this voids safety certifications and is not recommended for SIL-relevant applications. Early engagement with ABB or certified system integrators is advised to develop a phased migration plan aligned with plant turnaround schedules.
