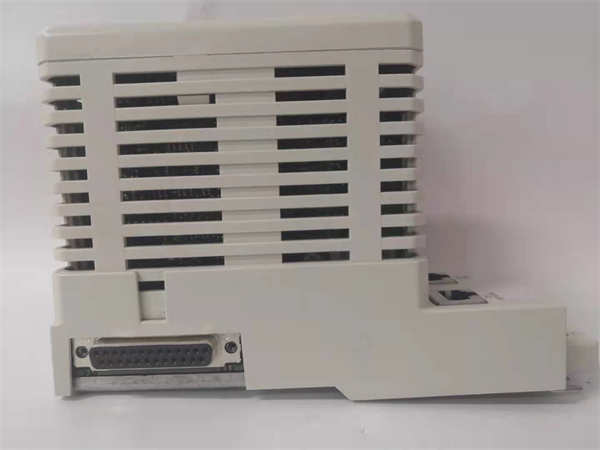

ABB 3BSE043660R1 CI867K01 | PROFIBUS DP Master/Slave Module | Obsolete Spare Parts & Risk Analysis

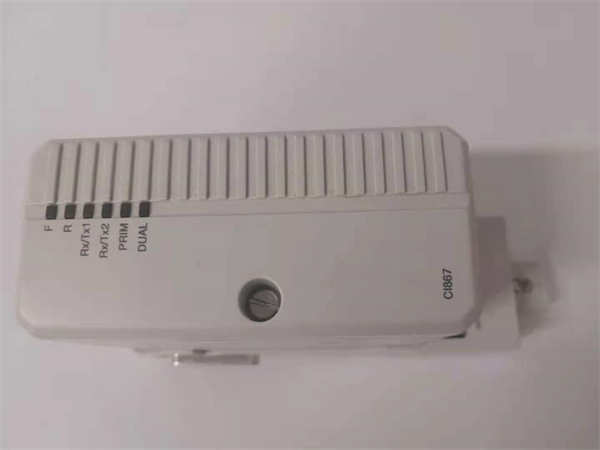

ABB 3BSE043660R1 CI867K01 | PROFIBUS DP Master/Slave Module | Obsolete Spare Parts & Risk Analysis - Image 2

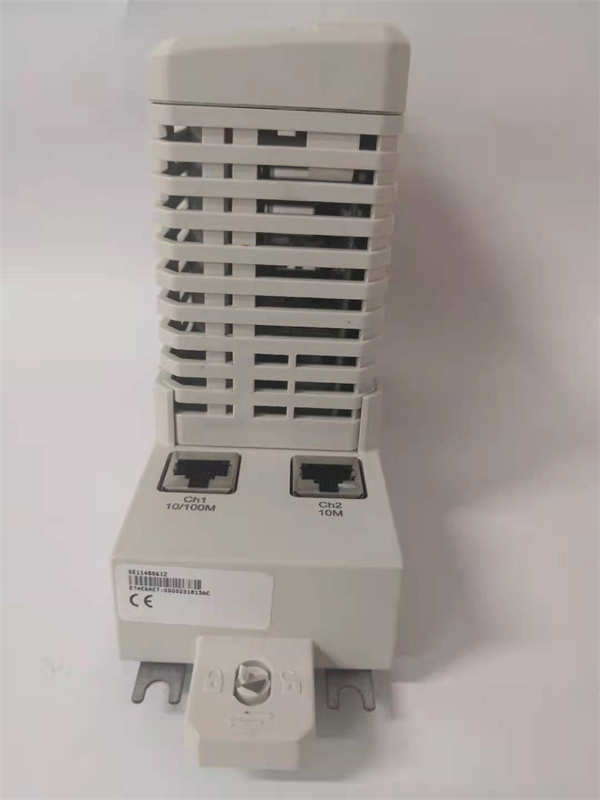

ABB 3BSE043660R1 CI867K01 | PROFIBUS DP Master/Slave Module | Obsolete Spare Parts & Risk Analysis - Image 3
ABB 3BSE043660R1 CI867K01 | PROFIBUS DP Master/Slave Module | Obsolete Spare Parts & Risk Analysis - Image 4

ABB 3BSE043660R1 CI867K01 | PROFIBUS DP Master/Slave Module | Obsolete Spare Parts & Risk Analysis

  • Model: 3BSE043660R1 (CI867K01)
  • Brand: ABB
  • Core Function: PROFIBUS DP communication module for ABB AC 800M controller, supporting master or slave operation with redundancy
  • Lifecycle Status: Obsolete – superseded by newer communication modules in the AC 800M portfolio; no longer actively marketed by ABB
  • Procurement Risk: High – limited to secondary market and surplus channels; pricing inconsistent and authenticity verification required
  • Critical Role: Primary interface between AC 800M CPU and PROFIBUS-based field devices (e.g., drives, I/O slaves, valves); failure disrupts real-time data exchange and may trigger process shutdown
Category: SKU: ABB 3BSE043660R1 CI867K01

Description

Technical Specifications (For Spare Parts Verification)

  • Product Model: 3BSE043660R1
  • Manufacturer: ABB
  • Module Type: CI867K01
  • System Family: ABB System 800xA with AC 800M controllers
  • Communication Protocol: PROFIBUS DP (Class 1 and Class 2), up to 12 Mbps
  • Operating Mode: Configurable as Master or Slave; supports redundant pair (dual-module hot standby)
  • Physical Interface: 9-pin D-SUB (RS-485), isolated
  • Isolation Voltage: 500 VAC between backplane and field side
  • Power Consumption: ～2.5 W (supplied via AC 800M backplane)
  • Mounting: Plug-in module for AC 800M I/O rail (requires base unit, e.g., TB840A)
  • Diagnostics: LED indicators for PWR, RUN, COM, and ERROR; detailed status via Control Builder M

System Role and Downtime Impact

The CI867K01 serves as a critical fieldbus gateway in ABB System 800xA installations, commonly used in power generation, oil & gas, and heavy industry. It enables the AC 80 0M controller to communicate with distributed PROFIBUS devices such as ABB ACS800/880 drives, remote I/O stations (e.g., ET200M), and smart valve positioners. In redundant configurations, it ensures continuous operation during single-module faults. However, if the module fails in a non-redundant setup—or if both units fail in a redundant pair—the controller loses visibility and control over all connected PROFIBUS devices. This typically results in process interruption, safety interlocks activation, or forced derating of plant output. Given its role in high-availability systems, its reliability directly impacts operational continuity.



Reliability Analysis and Common Failure Modes

Despite robust industrial design, the CI867K01 is vulnerable to field-induced stresses after years of service. The most common failure mode is RS-485 transceiver degradation due to repeated exposure to ground potential differences, lightning-induced surges, or improper shielding on long PROFIBUS cables. This manifests as intermittent communication errors, CRC faults, or complete bus dropout.
Another frequent issue is firmware corruption or configuration mismatch, especially after power cycling without proper backup—though the module itself stores minimal configuration, it relies on correct project settings in Control Builder M. Additionally, connector corrosion at the D-SUB port in humid or corrosive environments can cause signal reflection and bus instability.
Design-wise, while the module features electrical isolation, it lacks integrated surge suppression on the field terminals—making external protection essential. The absence of replaceable components also means that any internal semiconductor failure necessitates full module replacement.
Preventive maintenance recommendations include:
  • Regularly inspecting PROFIBUS cable shielding and grounding at both ends
  • Verifying bus termination resistors (should be ON only at physical endpoints)
  • Monitoring diagnostic logs in System 800xA for recurring “bus fault” or “slave timeout” events
  • Keeping a verified spare with matching firmware version and hardware revision
ABB 3BSE043660R1 CI867K01

ABB 3BSE043660R1 CI867K01

Lifecycle Status and Migration Strategy

ABB has phased out the CI867K01 in favor of more versatile and secure communication modules such as the CI871 (PROFIBUS/PROFINET) or CI874 (Ethernet-based protocols including OPC UA). While not officially declared “end-of-life” in all regions, the CI867K01 is no longer listed in current catalogs, and ABB discourages its use in new projects. Spare availability is declining, and technical support is limited to legacy service agreements.
As a short-term measure, operators can:
  • Source tested units from certified industrial surplus suppliers
  • Implement external PROFIBUS isolators or repeaters to reduce electrical stress on the module
  • Archive exact firmware and hardware revision details to ensure spare compatibility
For long-term sustainability, ABB recommends migrating to CI871 or CI874 modules within the same AC 800M rack. This requires:
  • Updating the control application in Control Builder M to redefine communication objects
  • Reconfiguring field device GSD files and network parameters
  • Potentially replacing older PROFIBUS slaves with PROFINET or Ethernet-APL devices in future phases
This migration preserves the existing AC 800M investment while enhancing cybersecurity, diagnostics, and interoperability with modern SCADA and cloud platforms. For facilities planning a full DCS upgrade, transitioning to ABB’s Ability™ System 800xA with AC 900F or AC 500 platforms offers a future-proof alternative.
