WhatsApp: Description
Technical Specifications (For Spare Parts Verification)
- Product Model: DSDI146
- Manufacturer: ABB
- System Platform: AC 800M controller with S800 I/O subsystem in 800xA Distributed Control System
- Input Channels: 32 isolated digital inputs
- Input Voltage: 24 VDC (nominal), with under-voltage detection
- Input Type: Sinking (NPN-compatible); requires external voltage source from field
- Isolation: Channel-to-channel and channel-to-backplane isolation per IEC 61010
- Backplane Interface: Connects via TB801/TB802 baseplate to ModuleBus
- Diagnostic Features: Per-channel LED indication, open-circuit detection, and group diagnostics via Control Builder M
- Operating Temperature: 0°C to +60°C
- Mounting: DIN rail via compatible terminal base (e.g., TB801A)
System Role and Downtime Impact
The DSDI146 serves as a primary data acquisition point for binary field signals in ABB’s 800xA systems. It is commonly deployed in power generation, oil & gas, and chemical plants to monitor equipment status—such as pump running signals, valve position limits, or safety switch states. In safety-related or interlocked sequences, loss of input from this module can prevent logic execution, leading to failed startups, inhibited trips, or unacknowledged alarms. While a single channel failure may be tolerable, a full module fault (e.g., due to backplane communication loss or internal power regulation failure) can disable up to 32 critical signals simultaneously. In high-availability applications where redundancy is not implemented at the I/O level, this poses a direct risk of unplanned process interruption or reduced operational safety margins.
Reliability Analysis and Common Failure Modes
Despite its solid-state design, the DSDI146 is susceptible to age-related and environmental degradation. The most prevalent failure modes include: failure of input optocouplers due to prolonged exposure to voltage transients or ground loops, corrosion on terminal screws in humid or corrosive atmospheres, and degradation of internal DC/DC converters that supply isolated logic power. A notable design limitation is the lack of individual channel fusing—overvoltage on one input can damage multiple channels or the entire module. Additionally, repeated thermal cycling can cause solder joint fatigue on the PCB, especially near high-current traces.
Recommended preventive actions include: verifying wiring practices (avoiding shared neutrals or long untwisted runs), inspecting terminal tightness during maintenance outages, monitoring diagnostic logs in 800xA for “Input Invalid” flags, and ensuring proper grounding of the I/O cabinet. Modules stored as spares should be kept in ESD-safe, dry environments to prevent moisture absorption in conformal coatings.

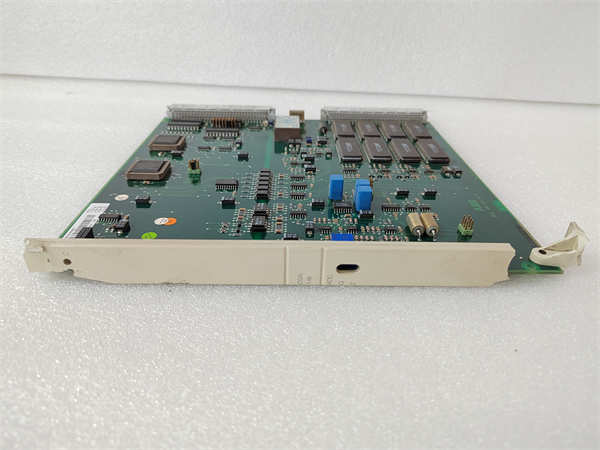

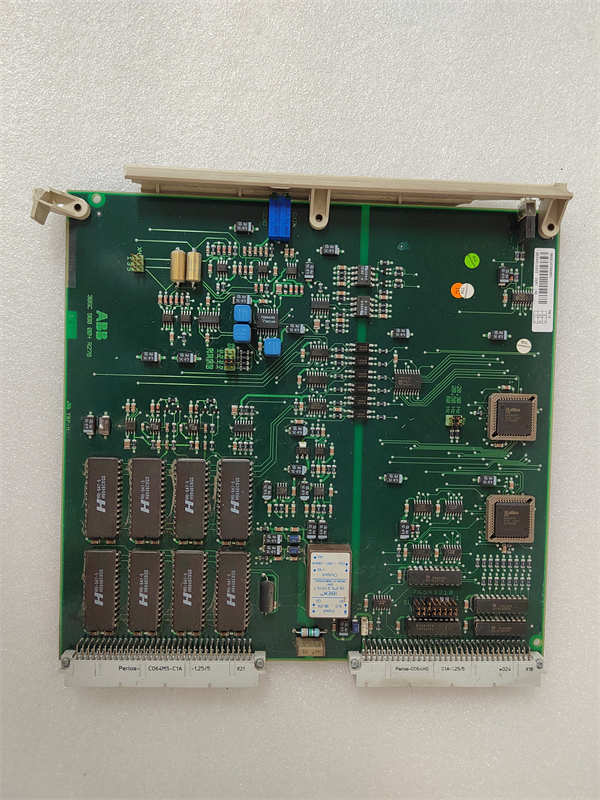

DSDI146 3BSE007949R1 ABB
Lifecycle Status and Migration Strategy
ABB has formally discontinued the DSDI146 as part of the S800 I/O legacy product phase-out. No new units are manufactured, and official repair services are no longer available. Continued use relies entirely on dwindling surplus inventory, which carries risks of counterfeit labeling, improper storage, or hidden latent defects.
As an interim measure, facilities can procure only from suppliers providing full functional test reports—including channel-by-channel input validation and backplane communication checks—and maintain a minimum of two verified spares per critical application.
The recommended long-term path is migration to ABB’s current-generation I/O portfolio. The direct functional successor is the DSDI 156 (order code 3BSE042246R1), a 32-channel digital input module compatible with the same TB801/TB802 bases but built on updated electronics with enhanced diagnostics and cybersecurity compliance. Migration requires no cabinet rewiring—only module replacement and online download in Control Builder M. For new projects or major upgrades, ABB encourages adoption of the Ability™ System 800xA with AC 800M PM867 and next-gen I/O, ensuring supportability through the 2030s. This transition preserves existing control logic while eliminating dependency on obsolete hardware with uncertain supply and reliability.
