Key Technical Specifications (For Spare Parts Verification)
- Product Model: 3500/92
- Manufacturer: Bently Nevada
- Part Number: 136180-01
- System Platform: 3500 Machinery Protection System (standard and enhanced racks)
- Module Type: Communication Gateway
- Network Interface: One 10/100 Mbps Ethernet port (RJ-45)
- Supported Protocols: Modbus/TCP (slave), Bently Nevada EGD (Ethernet Global Data), and proprietary Rack Interface Protocol (RIP)
- Data Capacity: Supports up to 128 rack parameters (vibration, speed, temperature, alarm status)
- Configuration Method: Set via front-panel rotary switches (rack address) and software (3500 Configuration Software or Rack Utility)
- Power Supply: +5 V DC and ±12 V DC from 3500 backplane
- Mounting: Full-height slot in 3500 chassis (typically slot 1 or 2)
- Firmware Revision: Factory-set; not user-upgradable on early units (136180-01 is Rev A/B)
System Role and Downtime Impact
The 3500/92 module serves as the primary data conduit between the safety-critical 3500 machinery protection rack and external plant systems. While it does not participate in real-time trip logic, its failure severs visibility into machine health—disabling alarm notifications to central control rooms, halting data logging to historians, and preventing remote diagnostics by reliability engineers. In facilities relying on predictive maintenance or regulatory compliance reporting (e.g., API 670), loss of this gateway can trigger operational non-conformities.
Although the 3500 rack continues to provide local protection, the absence of networked data significantly increases response time during abnormal events. In unmanned or remotely operated sites (e.g., offshore platforms, pipeline compressor stations), this can delay intervention and escalate minor issues into major failures. Since the 3500/92 occupies a dedicated full-height slot and cannot be bypassed, its replacement typically requires a planned outage.
Reliability Analysis and Common Failure Modes
Despite its digital nature, the 3500/92 is prone to age-related hardware degradation. Common failure modes include: failure of the embedded Ethernet controller due to power supply ripple or thermal cycling; corrosion on the RJ-45 jack leading to intermittent connectivity; and flash memory corruption causing boot loops or configuration loss—especially after unexpected power interruptions.
A notable design limitation is the lack of redundant communication paths in standard 3500 configurations; most installations deploy only one 3500/92 per rack. Additionally, early firmware versions (as shipped with 136180-01) contain known bugs that can cause Modbus register mapping errors under high polling loads.
Recommended maintenance actions include: verifying stable backplane voltage at the module slot, inspecting Ethernet cable strain relief and connector integrity, and maintaining offline backups of the gateway configuration file (.cfg). Any unit exhibiting repeated reboots or unresponsive network behavior should be replaced proactively, as recovery often requires factory-level reprogramming.

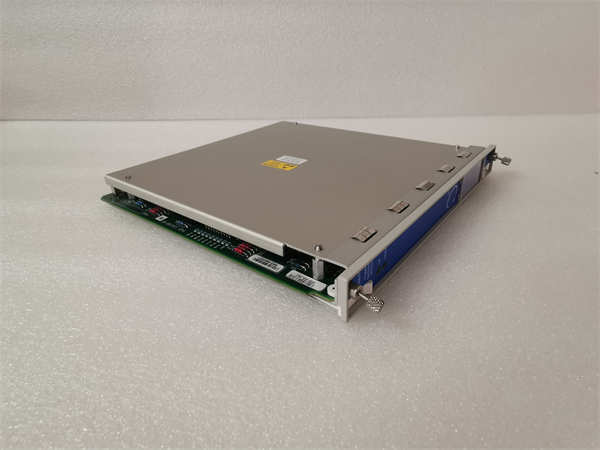

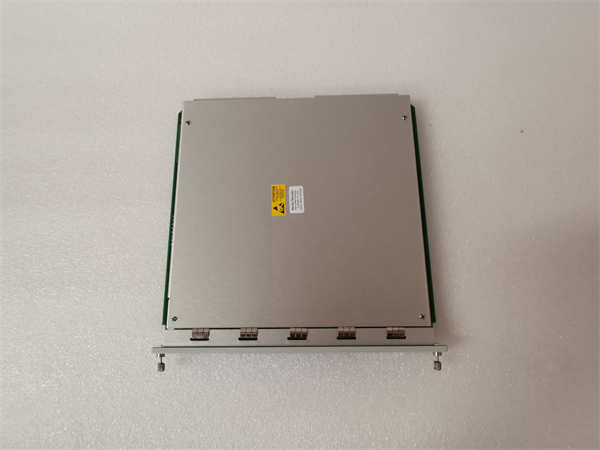

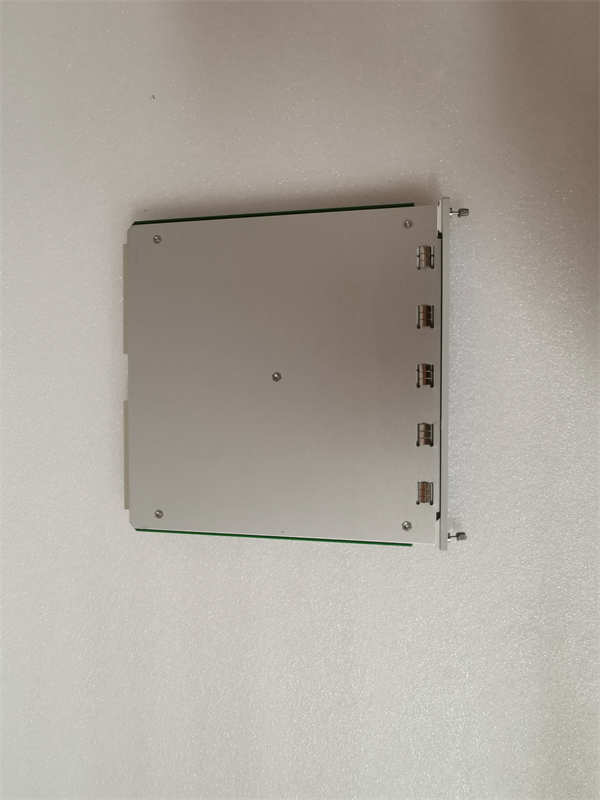

BENTLY NEVADA 3500/92 136180-01
Lifecycle Status and Migration Strategy
Bently Nevada has discontinued the 3500/92 (136180-01) and no longer provides repair or calibration services for this revision. New units are unavailable, and remaining inventory consists primarily of used or refurbished stock with uncertain service life.
Continued use introduces significant operational and compliance risks: inability to integrate with modern OT security frameworks, lack of protocol support for OPC UA or MQTT, and growing difficulty in troubleshooting due to obsolete documentation.
As an interim solution, facilities should secure at least one tested spare and validate its compatibility with their current 3500 rack firmware. For long-term sustainability, Bently Nevada recommends migrating to the 3500XP platform, which uses the 3500/94 Communication Gateway—a module supporting OPC UA, enhanced cybersecurity (TLS, role-based access), and seamless integration with Bently Nevada System 1 for advanced analytics.
Migration to 3500XP typically involves replacing the entire I/O chassis and re-commissioning the protection logic, but preserves existing field wiring through adapter terminal blocks. Until migration is feasible, rigorous spares management and periodic functional testing of the 3500/92 are essential to maintain operational visibility and regulatory compliance.
